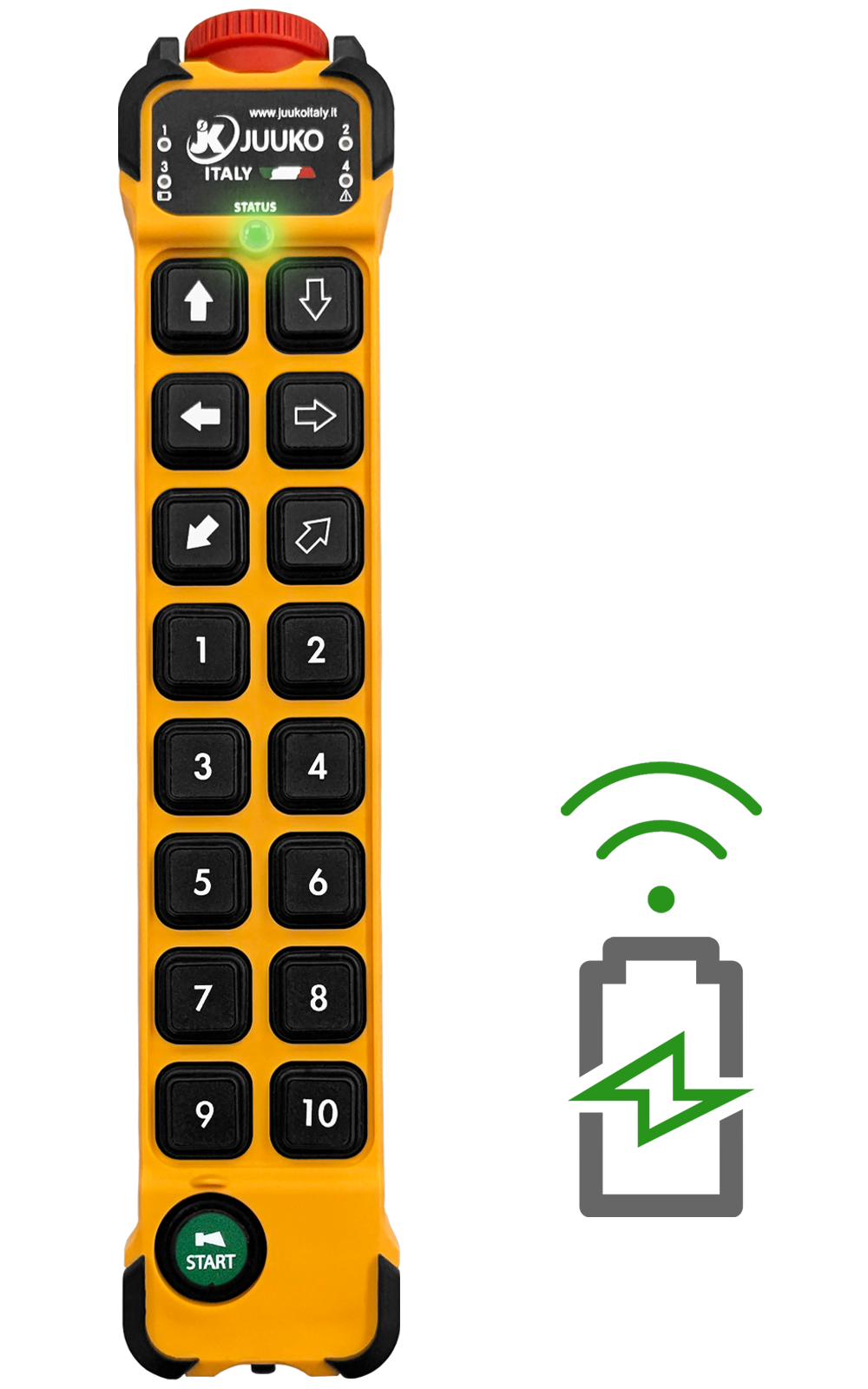

| Push-buttons Configuration | 1 START push-button 1 EMO (STOP) mushroom 16 push-buttons SINGLE STEP |
|---|---|
| Number of Available ON/OFF Command | Max. 16 + Start & EMO |
| Command Response Time | ~ 50 ms |
| Frequency Band | 433.0525 > 434.7900 Mhz |
| Channel Space | 12.5 kHz |
| Safety Performance of the STOP function (EN ISO 13849-1) |
Pl d |
| Radio Communication | Bi-directional continuous transmission |
| Antenna Impedance | 50 Ohm |
| Maximum Operating Distance | 100 Meters (free field) |
| Hamming Distance | ≥ 15 |
| Power Supply | LR6(AA) 1.5V / NiMH(AA) 1.2V x 2 |
| Dimensions | 291 x 57 x 51 mm |
| Weight | 449g |
| Degree Protection | IP65 |
| Housing Material | PA6 (GF30%) |
| Operating and Storage Temperature | (-20°C)~(+55°C) / (-40°C)~(+65°C) (-4°F)~(+131°F) / (-40°F)~(+149°C) |
| Frequency | 433.0525 > 434.7775 MHz |
|---|---|
| Modulation | 4GFSK |
| Sensitivity | -112dBm at 1,2Kbps |
| Control System | PLL |
| Antenna Impedance | 50 Ohm |
| Command Response Time | 50 > 100 mS |
| Power Supply | 24/48 Vdc |
| Antenna | External |
| Standby Current Consumption | 16mA at 220Vac |
| Operating and Storage Temperature | (-20°C)~(+55°C) / (-40°C)~(+65°C) (-4°F)~(+131°F) / (-40°F)~(+149°F) |
| Connecting Interfaces | Multi-core cable |
| Outputs | 18 configurable 5A mosfets |
| Degree Protection | IP65 |
| Dimensions | H184 x L190 x P64 mm |
| Weight | 780g |
| Housing | Nylon and glass fiber IP65 (PA6 30% GF) |
| Frequency | 433.0525 > 434.7775 MHz |
|---|---|
| Modulation | 4GFSK |
| Sensitivity | -112dBm at 1,2Kbps |
| Control System | PLL |
| Antenna Impedance | 50 Ohm |
| Command Response Time | 50 > 100 mS |
| Power Supply | 24/48 Vdc |
| Antenna | External |
| Standby Current Consumption | 16mA at 220Vac |
| Operating and Storage Temperature | (-20°C)~(+55°C) / (-40°C)~(+65°C) (-4°F)~(+131°F) / (-40°F)~(+149°F) |
| Connecting Interfaces | Multi-core cable |
| Outputs | 18 configurable 5A mosfets |
| Degree Protection | IP65 |
| Dimensions | H184 x L190 x P64 mm |
| Weight | 780g |
| Housing | Nylon and glass fiber IP65 (PA6 30% GF) |
