JM120502 DERRICK CRANE

Remote control for Derrick crane, JM120502 Series, advanced version. The LEDs presence allows the user to receive visual feedback about the battery status and on the activation of relays by the receiver in real time. Transmitter, thanks to its internal sensors, it's equipped with the special "roll-over protection" function. It understands when the remote control is overturning, for example a sudden fall by the user, and immediately inhibits all maneuvers until reaching the emergency state by switching off the whole system, in this way accidental inputs are removed.

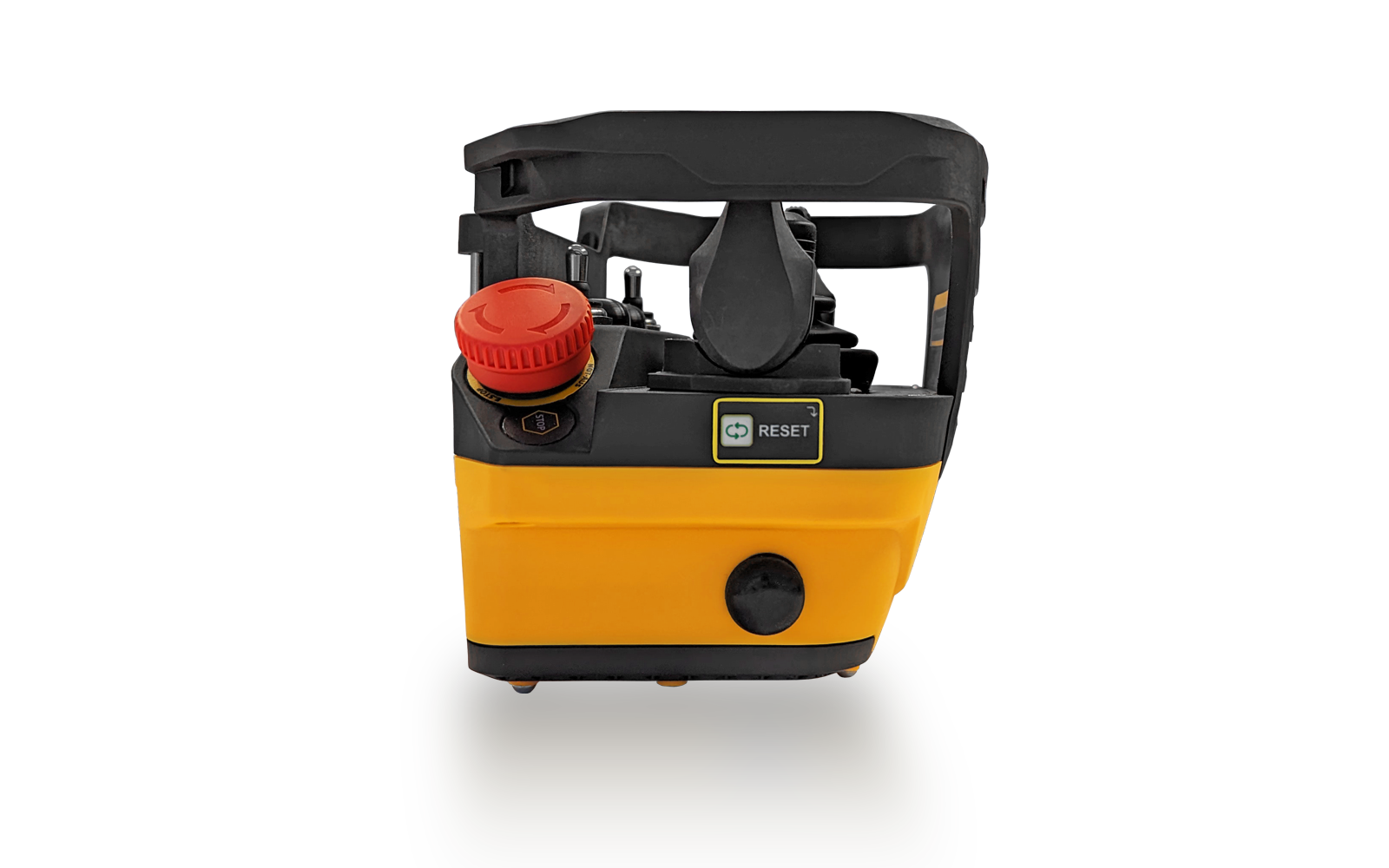

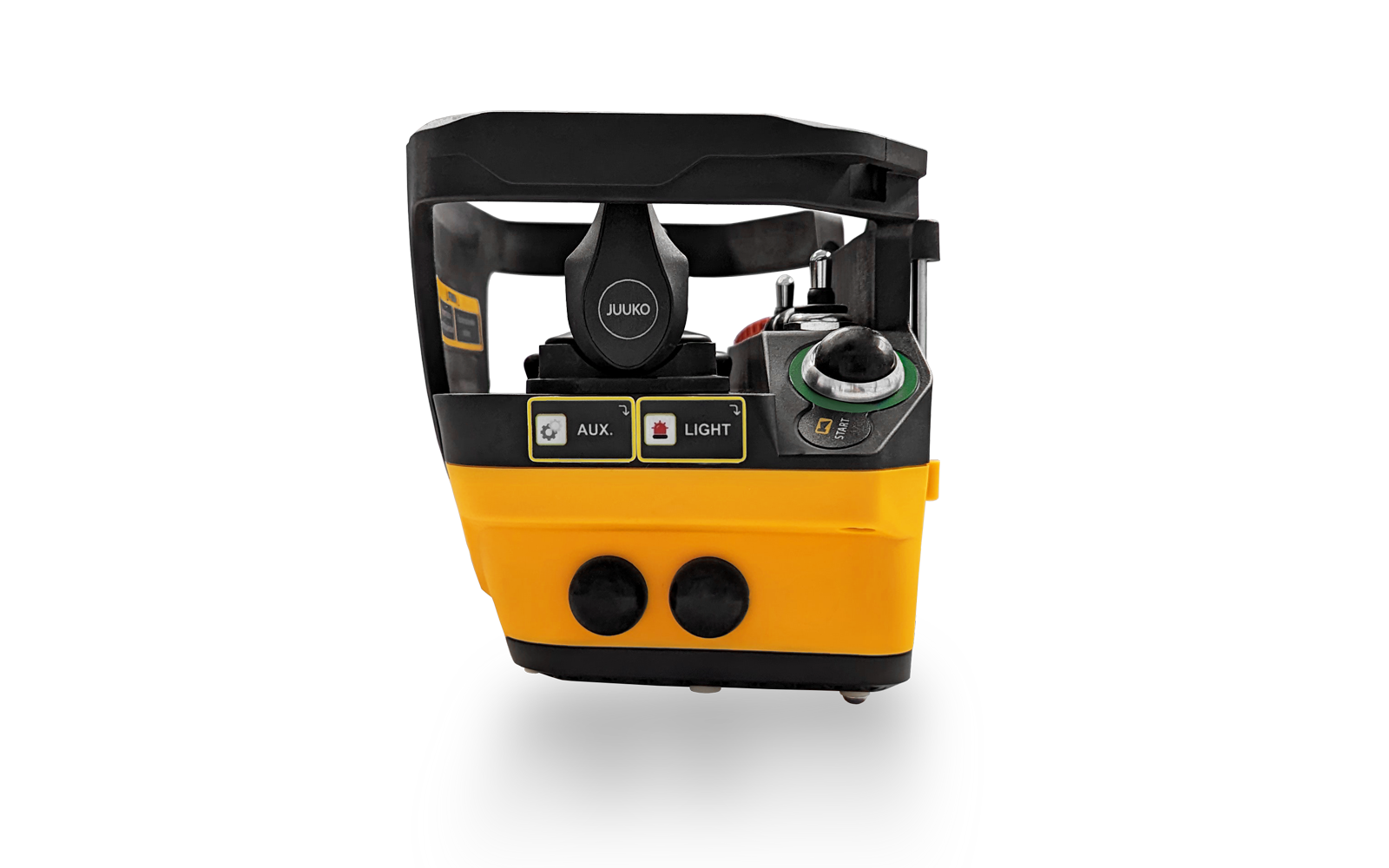

Side Pushbuttons

Extra pushbuttons placed in the side parts of the remote control for specific Derrick crane functions, like:

  • Weight reset
  • ON/OFF light
  • AUX

<H4>Biaxial joysticks </H4>

Biaxial joysticks

With the use of the biaxial joysticks, the control of maneuvers will always be fluid and accurate, with the chance of adjusting the speeds and, also, to perform precision micro-shifts.

<h4>QI CHARGING</h4>

QI CHARGING

The main Wireless "QI" charging standard has been adopted by hundreds of leading manufacturers and introduces the convenience of charging your device without using cables but simply by placing it on its Charging Pad.


Push-buttons Configuration -1 START push-button
-1 EMO (STOP) mushroom
-1 monoaxial joystick (2 step speed slewing)
-2 monoaxial paddle (2 step speed swing-weight)
-2 switches (selection speed change swing-weight)
-5 pushbuttons (2 x change speed consent, 1 x light, 1 x weight reset, 1 x AUX)
Number of Available ON/OFF Command Max. 20 + Start & EMO
Command Response Time ~ 50 ms
Frequency Band 433.0650 > 434.7650 Mhz
Channel Space 12.5 kHz
Safety Performance of the STOP
function (EN ISO 13849-1)		 Pl d
Radio Communication Bi-directional continuous transmission
Antenna Impedance 50 Ohm
Maximum Operating Distance 100 Meters (free field)
Hamming Distance ≥ 15
Power Supply LR6(AA)1.5V / NiMH(AA)1.2V x 4
Dimensions 200 x 141.3 x 139 mm
Weight approx. 1036g
Degree Protection IP65
Housing Material PA66 (GF30%)
Operating and Storage Temperature (-25°C)~(+55°C) / (-40°C)~(+85°C)
(-13°F)~(+131°F) / (-40°F)~(+185°C)
HML-24
HML-24
Go to product

Bag for JM Series

Pouch belt for JM Series

Shoulder strap for JM Series

QI pad wireless charging + micro USB cable

Pad dimensions: 77 x 55 x 6.5 mm

External Antenna SMA connector
