Joystick Remote Control Tower Crane simple ver. JM200100 SIMPLE TOWER CR.
- biaxial joysticks
- Roll-over protection
- USER MANAGEMENT TO SET RESTRICTED MODE
- 12 FEEDBACK RELAYS
Remote control JM200100 Series for tower crane simple version. The LEDs presence allows the user to receive visual feedback about the battery status and on the activation of relays by the receiver in real time. Transmitter, thanks to its internal sensors, it's equipped with the special "roll-over protection" function. It understands when the remote control is overturning, for example a sudden fall by the user, and immediately inhibits all maneuvers until reaching the emergency state by switching off the whole system, in this way accidental inputs are removed.

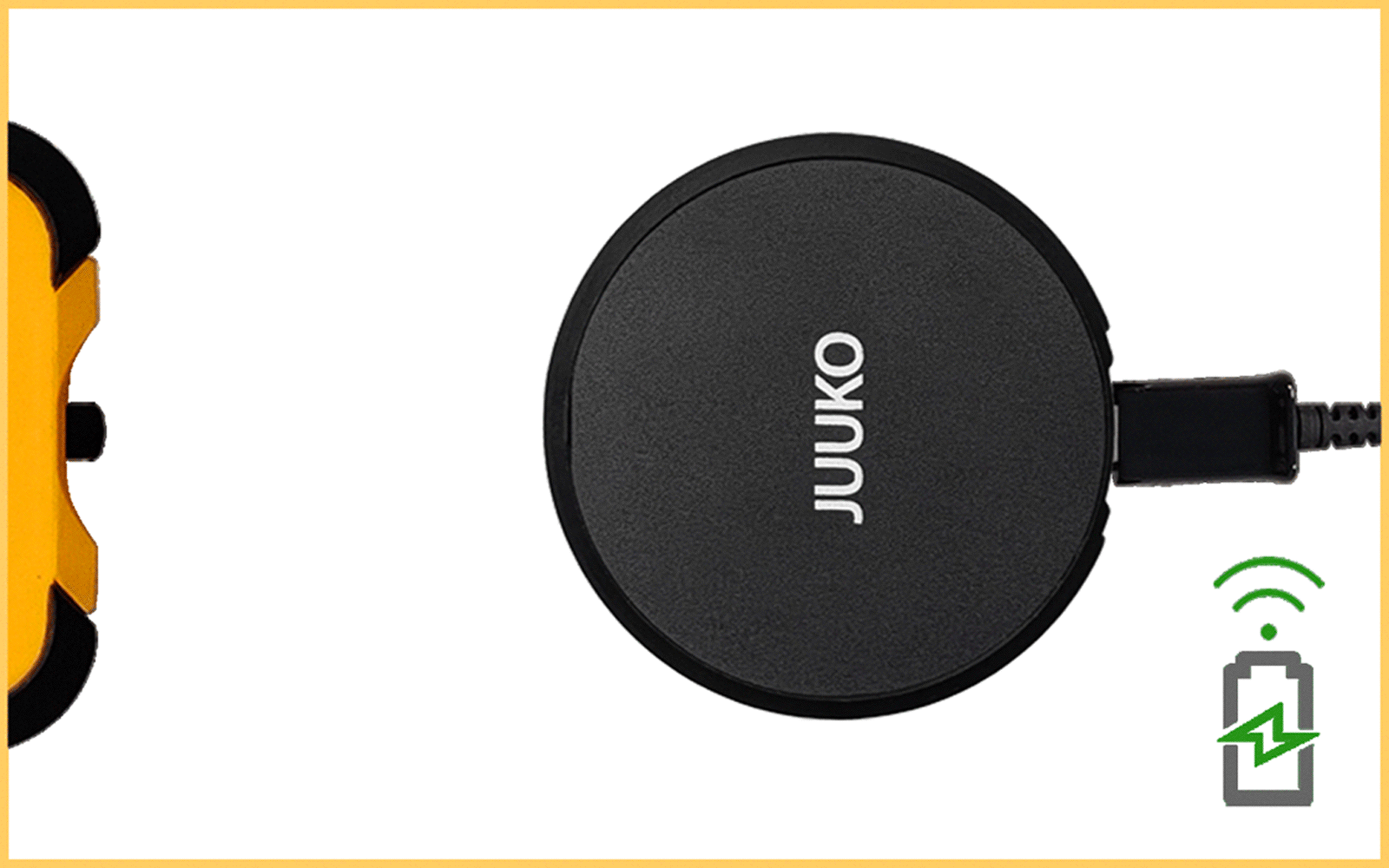

QI CHARGING
The main Wireless "QI" charging standard has been adopted by hundreds of leading manufacturers and introduces the convenience of charging your device without using cables but simply by placing it on its Charging Pad.

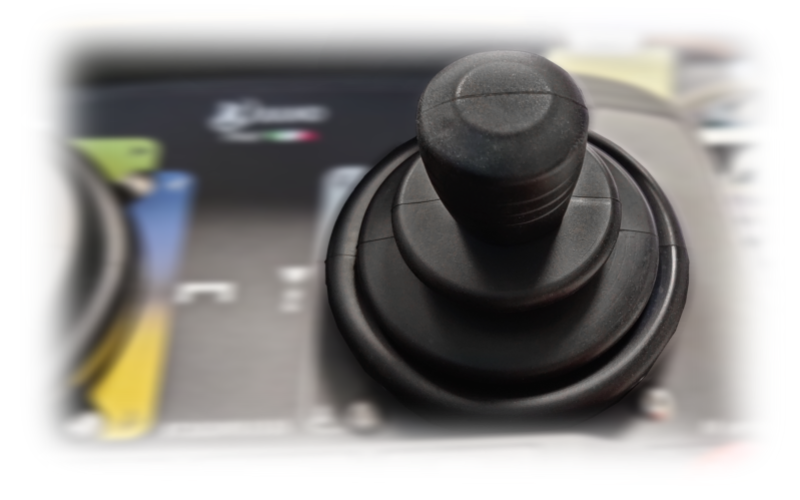

Biaxial joysticks
With the use of the biaxial joysticks, the control of maneuvers will always be fluid and accurate, with the chance of adjusting the speeds and, also, to perform precision micro-shifts.
DOWNLOAD THE TECHNICAL SHEET
| Push-buttons Configuration | -1 START push-button -1 EMO (STOP) mushroom -1 biaxial joystick (lift 4 speeds) -1 biaxial joystick (rotation 3 speeds, trolley 3 speeds) -1 AUX pushbutton |
|---|---|
| Number of Available ON/OFF Command | Max. 13 + Start & EMO |
| Command Response Time | ~ 50 ms |
| Frequency Band | 433.0650 > 434.7650 Mhz |
| Channel Space | 12.5 kHz |
| Safety Performance of the STOP function (EN ISO 13849-1) |
Pl d |
| Radio Communication | Bi-directional continuous transmission |
| Antenna Impedance | 50 Ohm |
| Maximum Operating Distance | 100 Meters (free field) |
| Hamming Distance | ≥ 15 |
| Power Supply | LR6(AA)1.5V / NiMH(AA)1.2V x 4 |
| Dimensions | 200 x 141.3 x 139 mm |
| Weight | approx. 1036g |
| Degree Protecion | IP65 |
| Housing Material | PA66 (GF30%) |
| Operating and Storage Temperature | (-25°C)~(+55°C) / (-40°C)~(+85°C) (-13°F)~(+131°F) / (-40°F)~(+185°C) |
Bag for JM Series
Pouch belt for JM Series
Shoulder strap for JM Series
QI pad wireless charging + micro USB cable
Pad dimensions: 77 x 55 x 6.5 mm
External Antenna SMA connector
