Pocket remote control JN400 - POCKET
- Compact and lightweight
- Feedback relay
- Battery status feedback
- portable
Radio remote controls 4 pushbuttons
The smallest transmitter, easy to transport and use. Excellent for controlling and commanding the main functions in the field of road transport such as lifting platforms and sliding side tarpaulins. The great versatility of the radio remote control allows a 360° application and is suitable for installation for the management of wine pumps and for opening and closing doors.
The presence of the LEDs allows the user to receive visual feedback about the battery status and on the activation of the relays by the receiver in real time. The system manages the power supply in Eco mode and this allows a longer battery life.

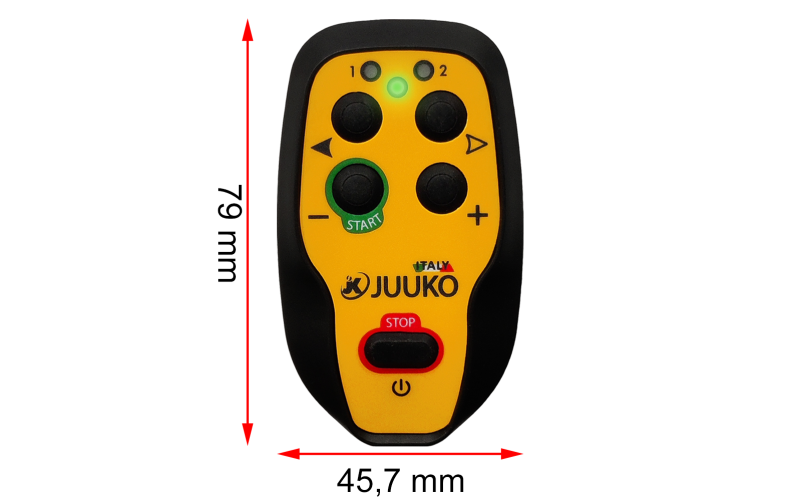

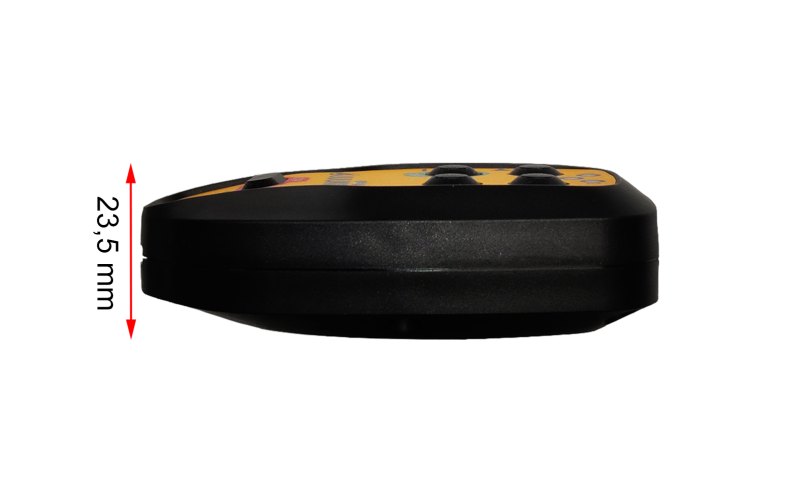

Dimensions

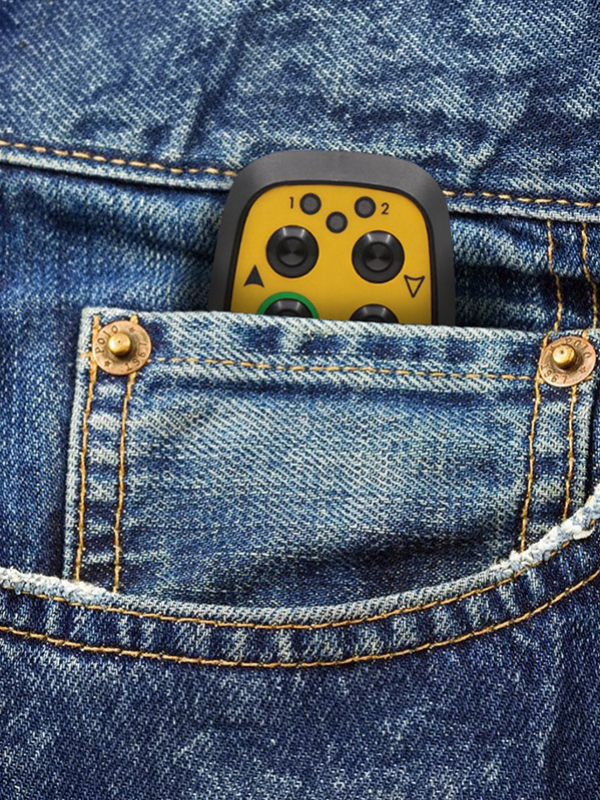

With its extremely compact and lightweight design, the JN400 transmitter is among the handiest in its class. In fact, thanks to its weight of only 79g and 78mm in height, its use is suitable for all situations where continuous use of the remote control is required and can then be conveniently stored in one's pocket, avoiding creating bulk for the user.
DOWNLOAD TECHNICAL SHEET
| Pushbuttons | 4 Single pressure motion buttons |
|---|---|
| Number of available ON/OFF command | Max 4 + Start & Stop pushbutton |
| Command Response Time | ~ 50 ms |
| Frequency Band | 433.0525 > 434.7900 Mhz |
| Channel Space | 12.5 kHz |
| Radio Communication | Bi-directional continuous transmission |
| Antenna Impedance | 50 Ohm |
| Maximum Operating Distance | 60 meters (free field) |
| Hamming Distance | ≥ 15 |
| Power Supply | LR6 (AAA)1.5V / NiMH(AAA) 1.2V x2 |
| Dimensions | 79 x 45.7 x 23.5mm |
| Weight (with Battery) | Approx. 78g |
| Protection Degree | IP65 |
| Housing Material | PA66 (GF30%) |
| Operating / Storage Temperature | (-25°C)~(+55°C) / (-40°C)~(+85°C) (-13°F)~(+131°F) / (-40°F)~(+185°C) |
1 set of 1.5 V alkaline batteries + 1 spare set
External Antenna SMA connector
| Technical Features | |
|---|---|
| Pushbuttons | 4 Single pressure motion buttons |
| Number of available ON/OFF command | Max 4 + Start & Stop pushbutton |
| Command Response Time | ~ 50 ms |
| Frequency Band | 433.0525 > 434.7900 Mhz |
| Channel Space | 12.5 kHz |
| Radio Communication | Bi-directional continuous transmission |
| Antenna Impedance | 50 Ohm |
| Maximum Operating Distance | 60 meters (free field) |
| Hamming Distance | ≥ 15 |
| Power Supply | LR6 (AAA)1.5V / NiMH(AAA) 1.2V x2 |
| Dimensions | 79 x 45.7 x 23.5mm |
| Weight (with Battery) | Approx. 78g |
| Protection Degree | IP65 |
| Housing Material | PA66 (GF30%) |
| Operating / Storage Temperature | (-25°C)~(+55°C) / (-40°C)~(+85°C) (-13°F)~(+131°F) / (-40°F)~(+185°C) |
1 set of 1.5 V alkaline batteries + 1 spare set
