8 Command Relays H-C4
- Power supply 24/264 Vac/dc
- 8 command relays
- RECEIVER FEEDBACK LED
- PLL Control system
The receiver is equipped with pull-out terminals for an easy connection to any system. The installation can be done by 4 corner brackets, or through fastening to the center nut. A green and red LED warns the state receiving transmission between transmitter and receiver unit by signaling via pulse code.

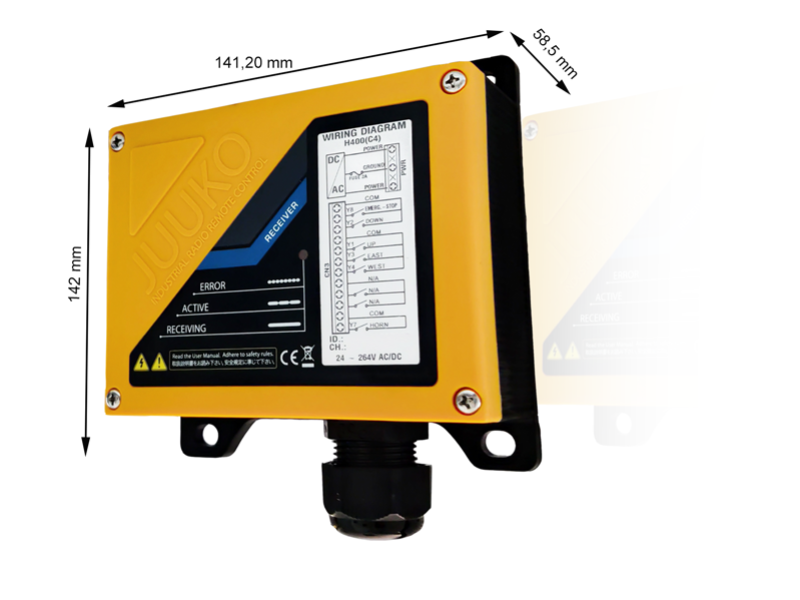

Small Dimensions

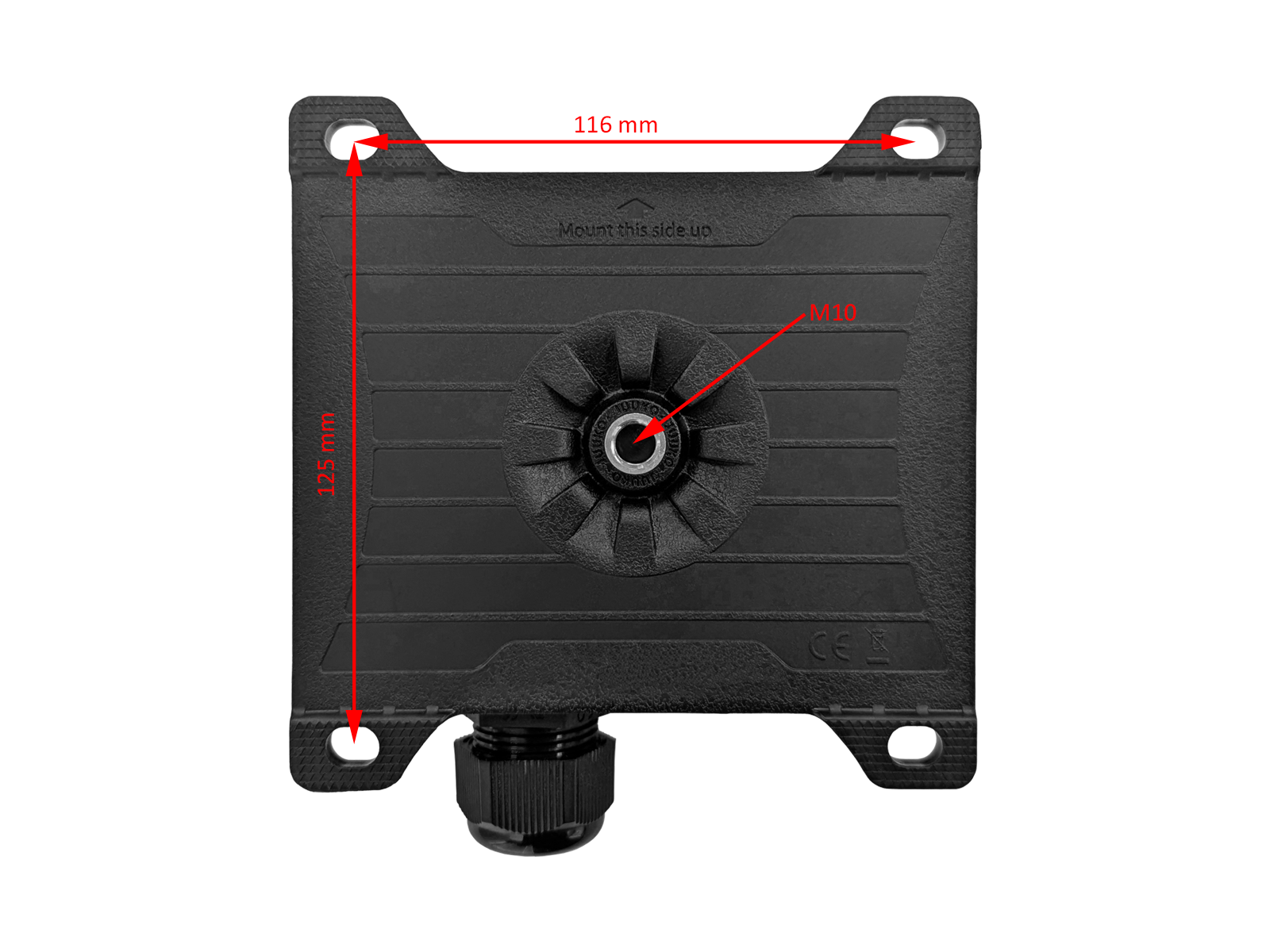

The H-C4 series receiver unit has been designed to minimize the aesthetic impact on the on-board system thanks to its small size. In the middle of the back part there is a hole for stud bolts M10 size.
Distance between mounting brackets:
- Width 116 mm
- Height 125 mm
Receiver Antenna
The receiving antenna can be easily screwed onto the SMA type connector.This particular makes it easier to move it to a different location.

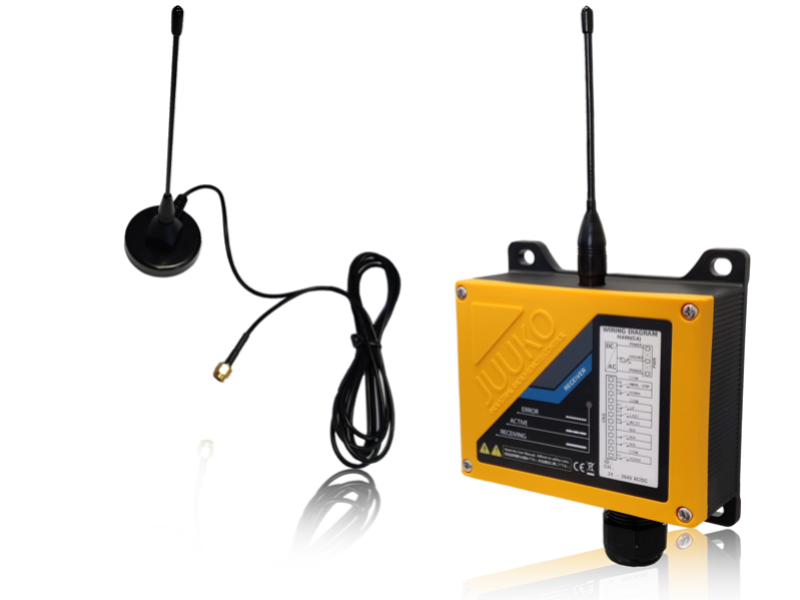

OPTIONAL It's possible to mount an external antenna with 2 or 5 meters cable, in this way you can install the antenna in a better reception place allowing the receiver positioning even inside an electrical panels or metal structures.
| Frequency | 433.0525 > 434.7775 |
|---|---|
| Modulation | 4GFSK |
| Sensitivity | -112dBm at 1.2 Kbps |
| Control System | PLL |
| Antenna Impedance | 50 ohm |
| Command Response Time | 50 > 100 mS |
| Power Supply | 24/264 Vac/dc OPTIONAL: 12 Vdc |
| Power Consumption | AC:8,3W / DC:12,8W |
| Antenna | External |
| Standby Current Consumption | 0,97W |
| Emission Power | + 10dBm |
| Operating Temperature | (-20°C)~(+55°C) / (-40°C)~(+65°C) (-4°F)~(+131°F) / (-40°F)~(+149°F) |
| Connecting Interfaces | Multi-core cable |
| Relays | 8 function |
| Protection Degree | IP65 |
| Dimensions | H142 x L141,2 x P58,5 (mm) |
| Weight | 800g |
| Housing | Nylon and glass fiber IP65 |
| Technical Features | |
|---|---|
| Frequency | 433.0525 > 434.7775 |
| Modulation | 4GFSK |
| Sensitivity | -112dBm at 1.2 Kbps |
| Control System | PLL |
| Antenna Impedance | 50 ohm |
| Command Response Time | 50 > 100 mS |
| Power Supply | 24/264 Vac/dc OPTIONAL: 12 Vdc |
| Power Consumption | AC:8,3W / DC:12,8W |
| Antenna | External |
| Standby Current Consumption | 0,97W |
| Emission Power | + 10dBm |
| Operating Temperature | (-20°C)~(+55°C) / (-40°C)~(+65°C) (-4°F)~(+131°F) / (-40°F)~(+149°F) |
| Connecting Interfaces | Multi-core cable |
| Relays | 8 function |
| Protection Degree | IP65 |
| Dimensions | H142 x L141,2 x P58,5 (mm) |
| Weight | 800g |
| Housing | Nylon and glass fiber IP65 |
