21 Command Relays HM
- 21 command relay
- Power supply 24/48 VAC/DC
- receiver feedback LED
- studied FOR MULTI-FUNCTIONS MACHINERY
The receiver is equipped with pull-out terminals for an easy connection to any system. The installation can be done by 4 corner brackets. A green and red LED warns the state receiving transmission between transmitter and receiver unit by signaling via pulse code.

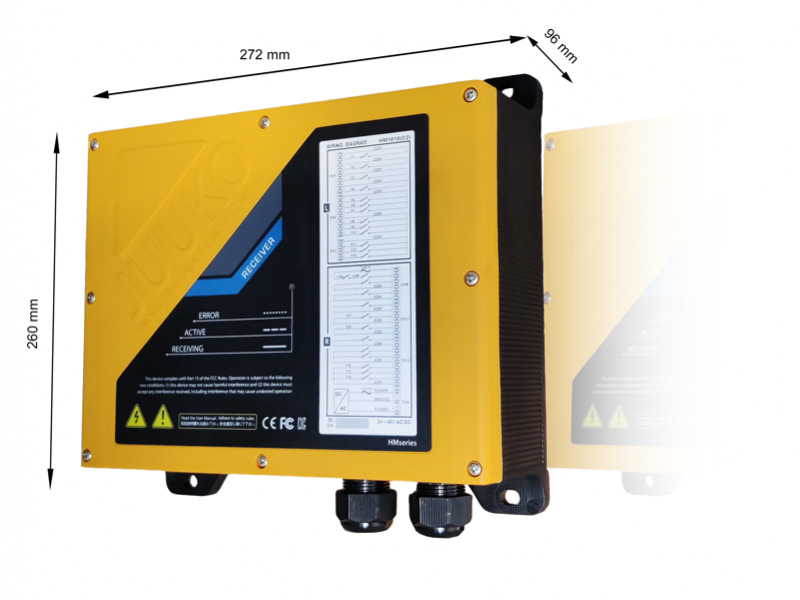

Dimensions

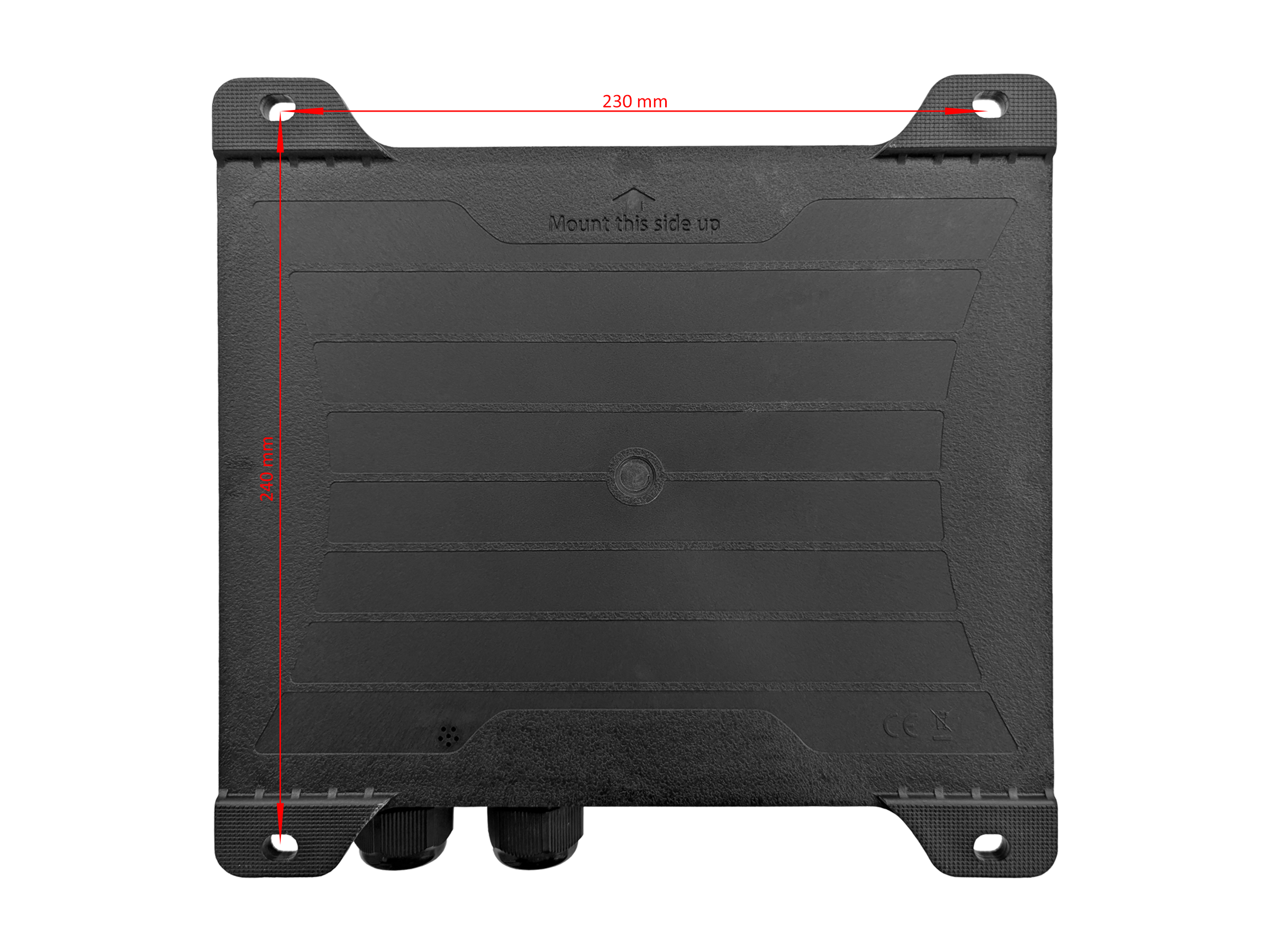

The C2 HM series receiver is the biggest size unit. After that it has been designed to minimize the aesthetic impact on the on-board system.Distance between mounting brackets:
- Width 230 mm
- Height 240 mm

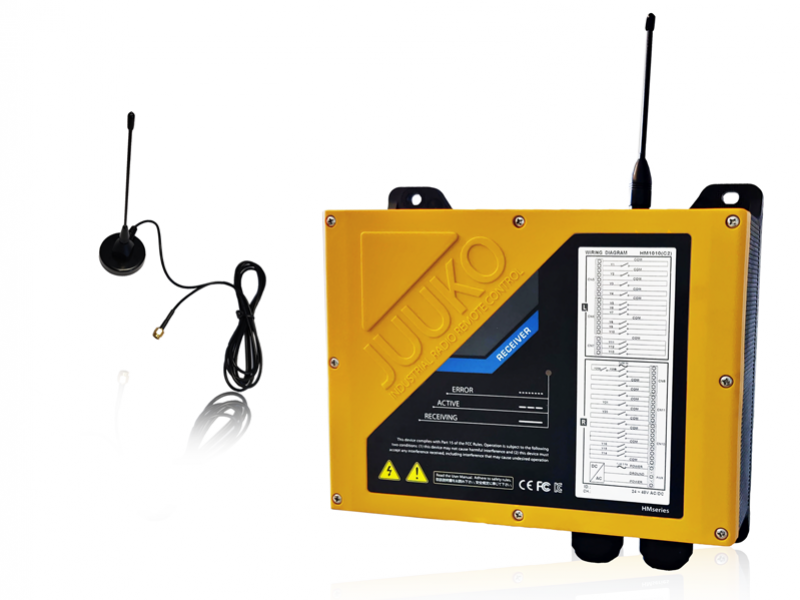

Receiver Antenna

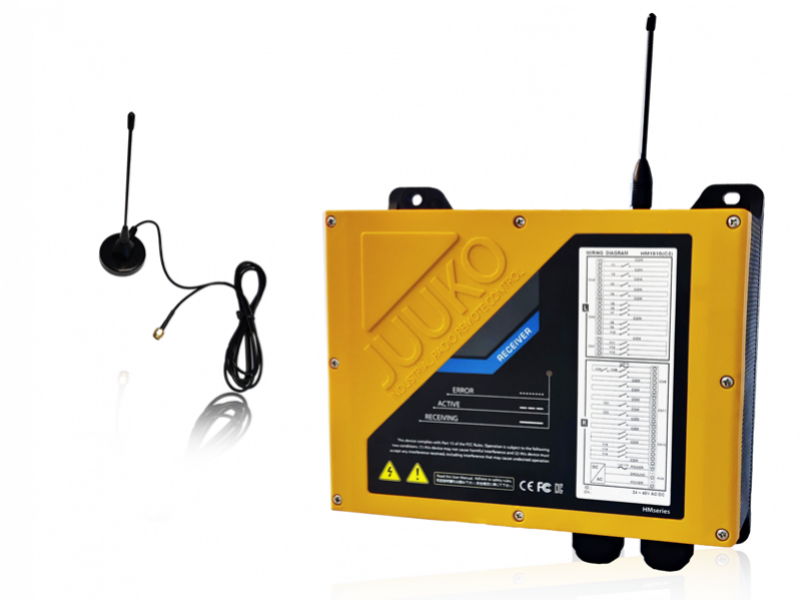

The receiving antenna can be easily screwed onto the SMA type connector. This particular makes it easier to move it to a different location. OPTIONAL It's possible to mount an external antenna with 2 or 5 meters cable, in this way you can install the antenna in a better reception place allowing the receiver positioning even inside an electrical panels or metal structures.| Frequency | 433.0525 > 434.7775 MHz |
|---|---|
| Modulation | 4GFSK |
| Sensitivity | -112dBm at 1,2Kbps |
| Control System | PLL |
| Safety Performance of the STOP function (EN ISO 13849-1) |
Pl d |
| Antenna Impedance | 50 Ohm |
| Command Response Time | 50 > 100mS |
| Power Supply | 24/48 Vac/dc OPTIONAL: 12 Vdc |
| Power Consumption | AC:10,4W / DC:22,4W |
| Antenna | External |
| Standby Current Consumption | 1,13W |
| Emission Power | +10dBm |
| Operating Temperature | (-20°C)~(+55°C) / (-40°C)~(+65°C) (-4°F)~(+131°F) / (-40°F)~(+149°F) |
| Connecting Interfaces | Multi-core cable |
| Relay | 2 Stop + max. 19 function (1 NO 5A 250Vca) |
| Protection Degree | IP65 |
| Dimensions | H260 x L272 x P96 mm |
| Weight | 2950g |
| Housing | Nylon and glass fiber IP65 |
