40 Funcion relays HML-44
- POWER SUPPLY 24/48VAC/DC
- 40 FUNCTION RELAYS
- FEEDBACK EXTERNAL INPUT
- DOUBLE RADIO MODULE
The receiver is equipped with pull-out terminals for an easy connection to any system. The installation can be done by 4 corner brackets. A green and red LED warns the state receiving transmission between transmitter and receiver unit by signaling via pulse code.
Dimensions
The HML series receiver is the biggest size unit. After that it has been designed to minimize the aesthetic impact on the on-board system.

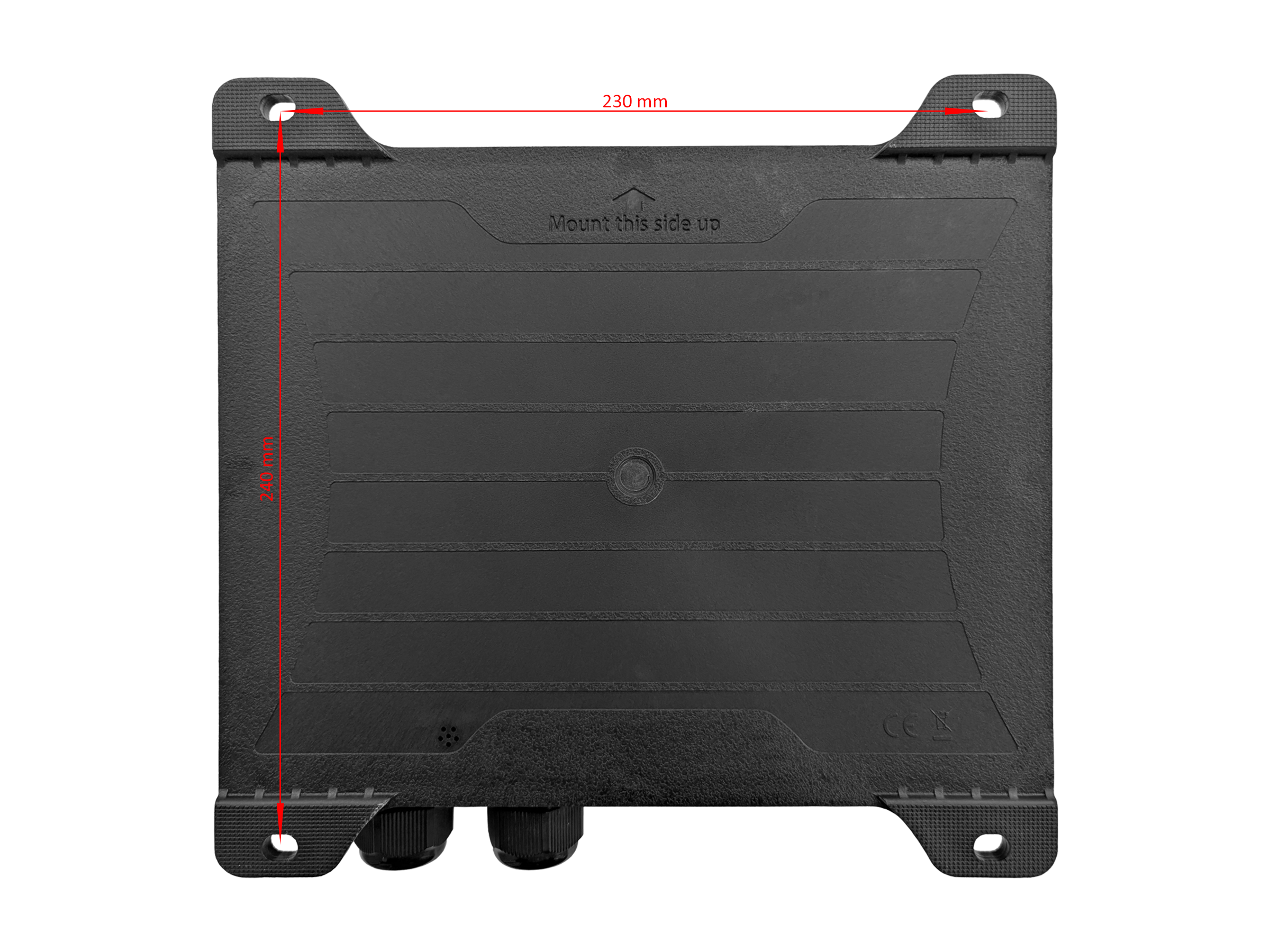

Distance between mounting brackets:
- Width 230 mm
- Height 240 mm

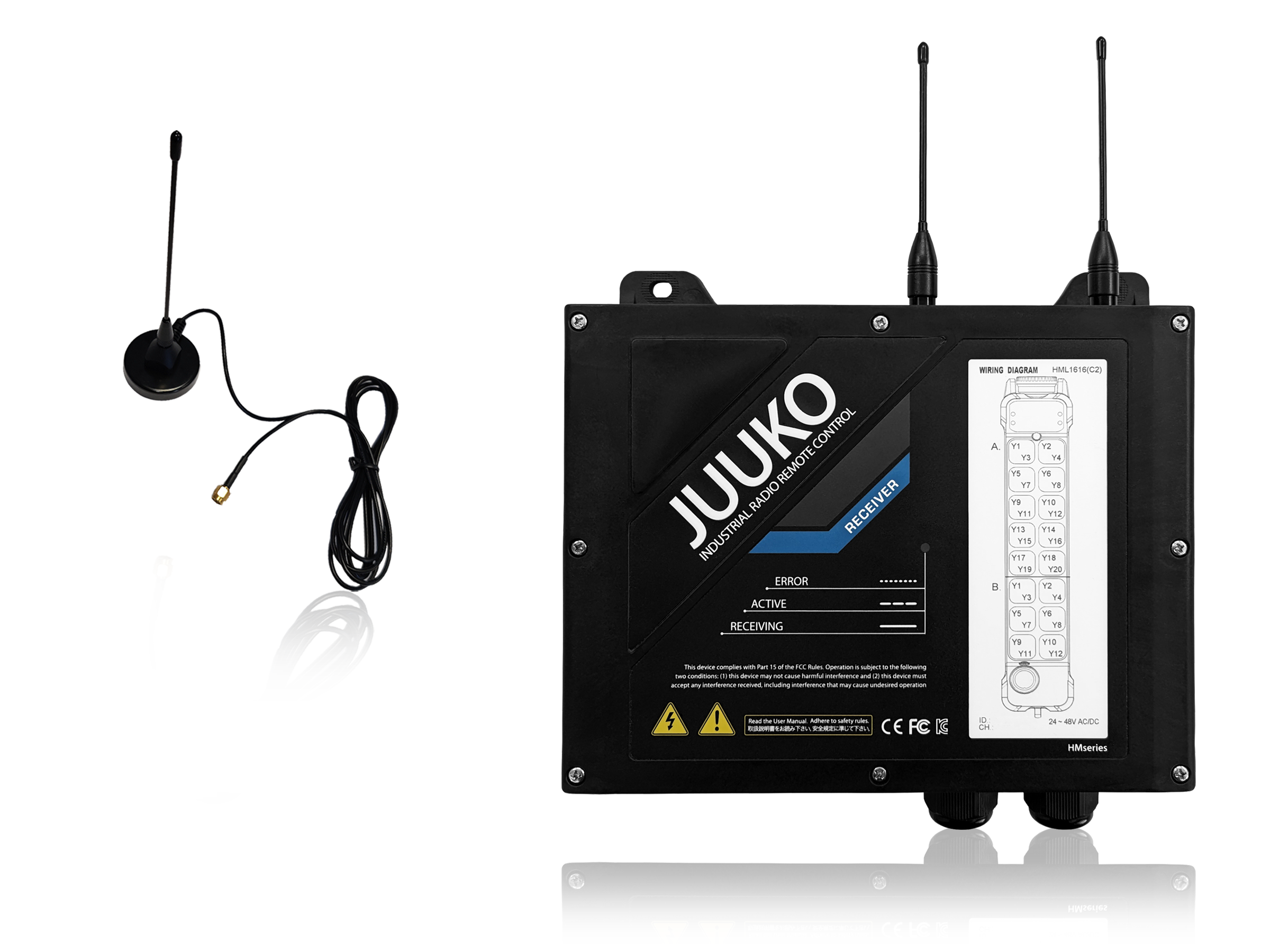

Receiver Antenna
The receiving antennas can be easily screwed onto the SMA type connector. This particular makes it easier to move it to a different location. OPTIONAL It's possible to mount an external antenna with 2 or 5 meters cable, in this way you can install the antenna in a better reception place allowing the receiver positioning even inside an electrical panels or metal structures.
| Frequency | 434.040 > 434.790 MHz |
|---|---|
| Modulation | 4GFSK |
| Sensitivity | -112dBm a 1.2Kbps |
| Control System | PLL |
| Safety Performance of the STOP function (EN ISO 13849-1) |
Pl d |
| Antenna Impedance | 50 Ohm |
| Command Response Time | 50 > 100mS |
| Power Supply | 24/48Vac/dc OPTIONAL: 12 Vdc |
| Power Consumption | AC:10,4W / DC:22,4W |
| Antenna | External |
| Standby Current Consumption | 0.97W |
| Operating and Storage Temperature | (-20°C)~(+55°C) / (-40°C)~(+65°C) (-4°F)~(+131°F) / (-40°F)~(+149°F) |
| Connecting Interfaces | Multi-core cable |
| Relay | 2 Start + 2 Stop + max. 40 function (NO 5A 250Vca) |
| Protection Degree | IP65 |
| Dimensions | H260 x L272 x P96 mm |
| Weight | approx. 2150g |
| Housing Material | PA6(30% GF) |
| TECHNICAL FEATURES | |
|---|---|
| Frequency | 434.040 > 434.790 MHz |
| Modulation | 4GFSK |
| Sensitivity | -112dBm a 1.2Kbps |
| Control System | PLL |
| Safety Performance of the STOP function (EN ISO 13849-1) |
Pl d |
| Antenna Impedance | 50 Ohm |
| Command Response Time | 50 > 100mS |
| Power Supply | 24/48Vac/dc OPTIONAL: 12 Vdc |
| Power Consumption | AC:10,4W / DC:22,4W |
| Antenna | External |
| Standby Current Consumption | 0.97W |
| Operating and Storage Temperature | (-20°C)~(+55°C) / (-40°C)~(+65°C) (-4°F)~(+131°F) / (-40°F)~(+149°F) |
| Connecting Interfaces | Multi-core cable |
| Relay | 2 Start + 2 Stop + max. 40 function (NO 5A 250Vca) |
| Protection Degree | IP65 |
| Dimensions | H260 x L272 x P96 mm |
| Weight | approx. 2150g |
| Housing Material | PA6(30% GF) |
