13 Command Relays HS (A/B/C)
- Power supply 24/264 VAC/DC
- 13 Command Relays
- receiver feedback LED
- security PL d/Cat. 3 - 13849-1
The receiver is equipped with pull-out terminals for an easy connection to any system. The installation can be done by 4 corner brackets, or through fastening to the center nut. A green and red LED warns the state receiving transmission between transmitter and receiver unit by signaling via pulse code.
Small Dimensions
The C2 HS series receiver is the middle size unit. It has been designed to have small dimensions and minimize the aesthetic impact on the on-board system. In the middle of the back part there is a hole for stud bolts M10 size.
Distance between mounting brackets:
- Width 156 mm
- Height 165 mm
Receiver Antenna

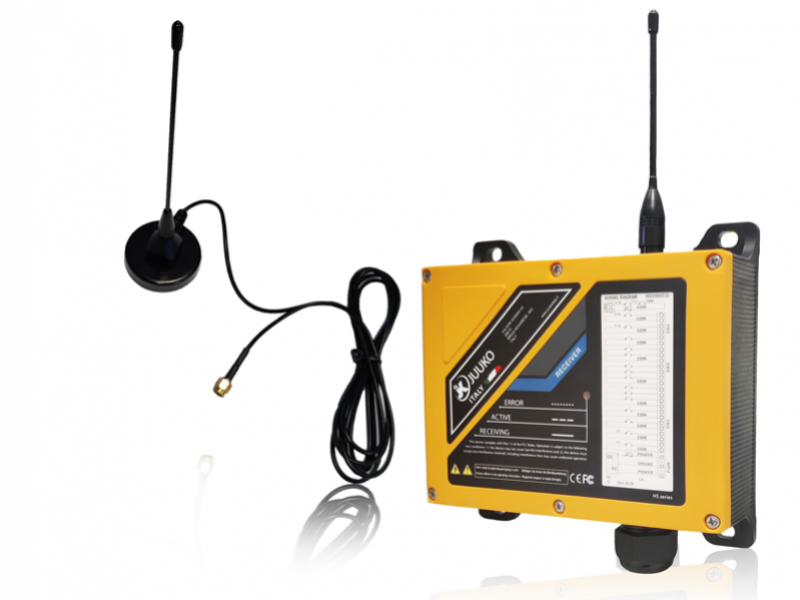

The receiving antenna can be easily screwed onto the SMA type connector. This particular makes it easier to move it to a different location. OPTIONAL It's possible to mount an external antenna with 2 or 5 meters cable, in this way you can install the antenna in a better reception place allowing the receiver positioning even inside an electrical panels or metal structures.| Frequency | 433.0525 > 434.7775 MHz |
|---|---|
| Modulation | 4GFSK |
| Sensitivity | -112dBm at 1,2Kbps |
| Control System | PLL |
| Safety Performance of the STOP function (EN ISO 13849-1) |
Pl d |
| Antenna Impedance | 50 Ohm |
| Command Response Time | 50 > 100 mS |
| Power Supply | 24/264 Vac/dc OPTIONAL: 12 Vdc |
| Power Consumption | AC:8,3W / DC:12.8W |
| Antenna | External |
| Standby Current Consumption | 0.97W |
| Electrical Absorption | 24 VDC: |
| Emission Power | + 10dBm |
| Operating Temperature | (-20°C)~(+55°C) / (-40°C)~(+65°C) (-4°F)~(+131°F) / (-40°F)~(+149°F) |
| Connecting Interfaces | Multi-core cable |
| Relays | 2 STOP + max. 13 function (1 NO 5A 250Vac) |
| Degree Protection | IP65 |
| Dimensions | H184 x L190 x P64 mm |
| Weight | 1795g |
| Housing | Nylon and glass fiber IP65 |
