Potentiometer 0 - 10V HS/R
- power supply 24/264 vac/dc
- 13 command relays
- POTENTIOMETER 0 ~ 10V
- RECEIVER FEEDBACK LED
The receiver is equipped with pull-out terminals for an easy connection to any system. The installation can be done by 4 corner brackets, or through fastening to the center nut. A green and red LED warns the state receiving transmission between transmitter and receiver unit by signaling via pulse code.
Small Dimensions
The HS-R Potentiometer series receiver is the middle size unit. It has been designed to have small dimensions and minimize the aesthetic impact on the on-board system. In the middle of the back part there is a hole for stud bolts M10 size.Distance between mounting:
- Width 156 mm
- Height 165 mm
Receiver Antenna

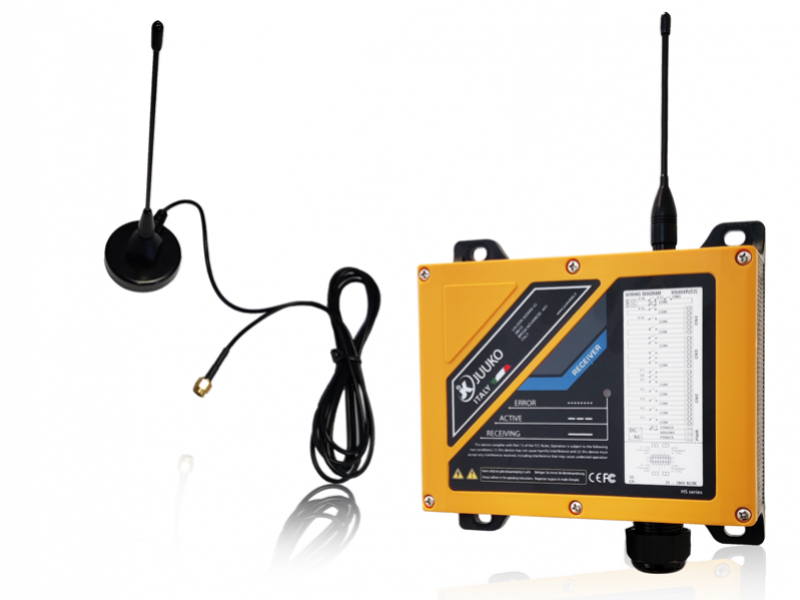

The receiving antenna can be easily screwed onto the SMA type connector. This particular makes it easier to move it to a different location. OPTIONAL It's possible to mount an external antenna with 2 or 5 meters cable, in this way you can install the antenna in a better reception place allowing the receiver positioning even inside an electrical panels or metal structures.

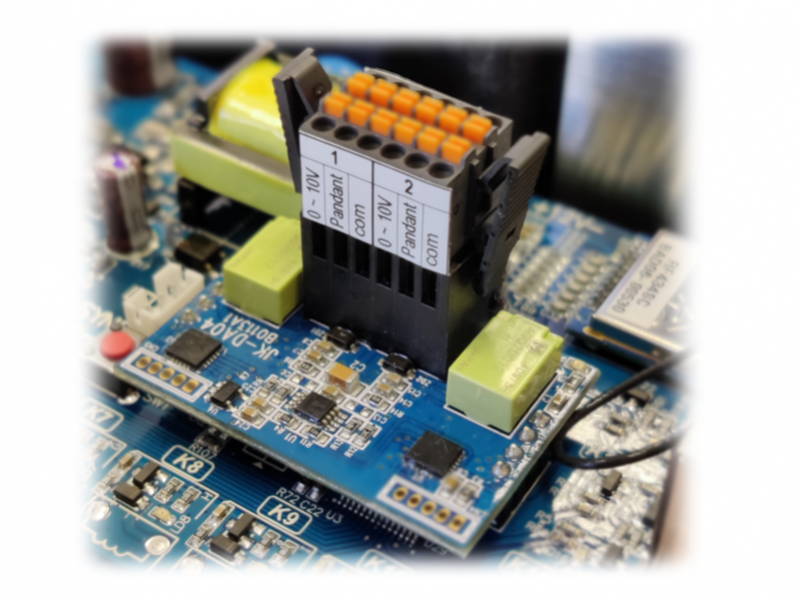

0~10 Volt Regulator
Used with the JKR transmitters series it's possible to control, through the practical knob situated on the remote control, the regolable 0~10 Volt output. So act on the potentiometer to adjust the speeds is immediate and accurate.| Frequency | 434.040 > 434.790 MHz |
|---|---|
| Modulation | 4GFSK |
| Sensitivity | -112dBm at 1,2Kbps |
| Control System | PLL |
| Safety Performance of the STOP function (EN ISO 13849-1) |
Pl d START option with potentiometer in position of Ø |
| Antenna Impedance | 50 Ohm |
| Command Response Time | 50 > 100 mS |
| Power Supply | 24/264 Vac/dc OPTIONAL 12 Vdc |
| Power Consumption | AC: 8,3W / DC:12,8W |
| Antenna | External |
| Standby Consumption | 0,97W |
| Operating and Storage Temperature | (-20°C)~(+55°C) / (-40°C)~(+65°C) (-4°F)~(+131°F) / (-40°F)~(+149°F) |
| Connecting Interfaces | Multi-core cable |
| Relay | 2 Arresto + max. 13 funzione (1 NO 5A 250Vca) |
| Protection Degree | IP65 |
| Dimensions | H184 x L190 x P64 mm |
| Weight | 1795g |
| Housing Material | PA6(30%GF) |
| Technical Features | |
|---|---|
| Frequency | 434.040 > 434.790 MHz |
| Modulation | 4GFSK |
| Sensitivity | -112dBm at 1,2Kbps |
| Control System | PLL |
| Safety Performance of the STOP function (EN ISO 13849-1) |
Pl d START option with potentiometer in position of Ø |
| Antenna Impedance | 50 Ohm |
| Command Response Time | 50 > 100 mS |
| Power Supply | 24/264 Vac/dc OPTIONAL 12 Vdc |
| Power Consumption | AC: 8,3W / DC:12,8W |
| Antenna | External |
| Standby Consumption | 0,97W |
| Operating and Storage Temperature | (-20°C)~(+55°C) / (-40°C)~(+65°C) (-4°F)~(+131°F) / (-40°F)~(+149°F) |
| Connecting Interfaces | Multi-core cable |
| Relay | 2 Arresto + max. 13 funzione (1 NO 5A 250Vca) |
| Protection Degree | IP65 |
| Dimensions | H184 x L190 x P64 mm |
| Weight | 1795g |
| Housing Material | PA6(30%GF) |
