16 Mosfet 5A max HV-16
- Power supply 12/24 Vdc
- 16 Mosfet 5A max
- ideal for strong vibrations
- receiver feedback LED
The MOSFET receiver is equipped with with terminal screws for an easy connection to any system. The installation can be done by 4 corner brackets, or through fastening to the center nut. A green and red LED warns the state receiving transmission between transmitter and receiver unit by signaling via pulse code.

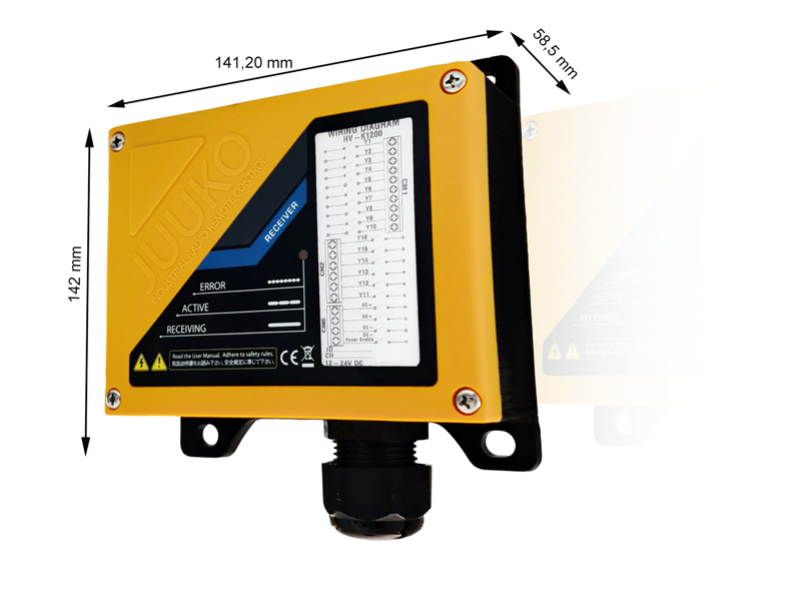

Small Dimensions
The HV MOSFET series receiver unit has been designed to minimize the aesthetic impact on the on-board system thanks to its small size. In the middle of the back part there is a hole for stud bolts M10 size.

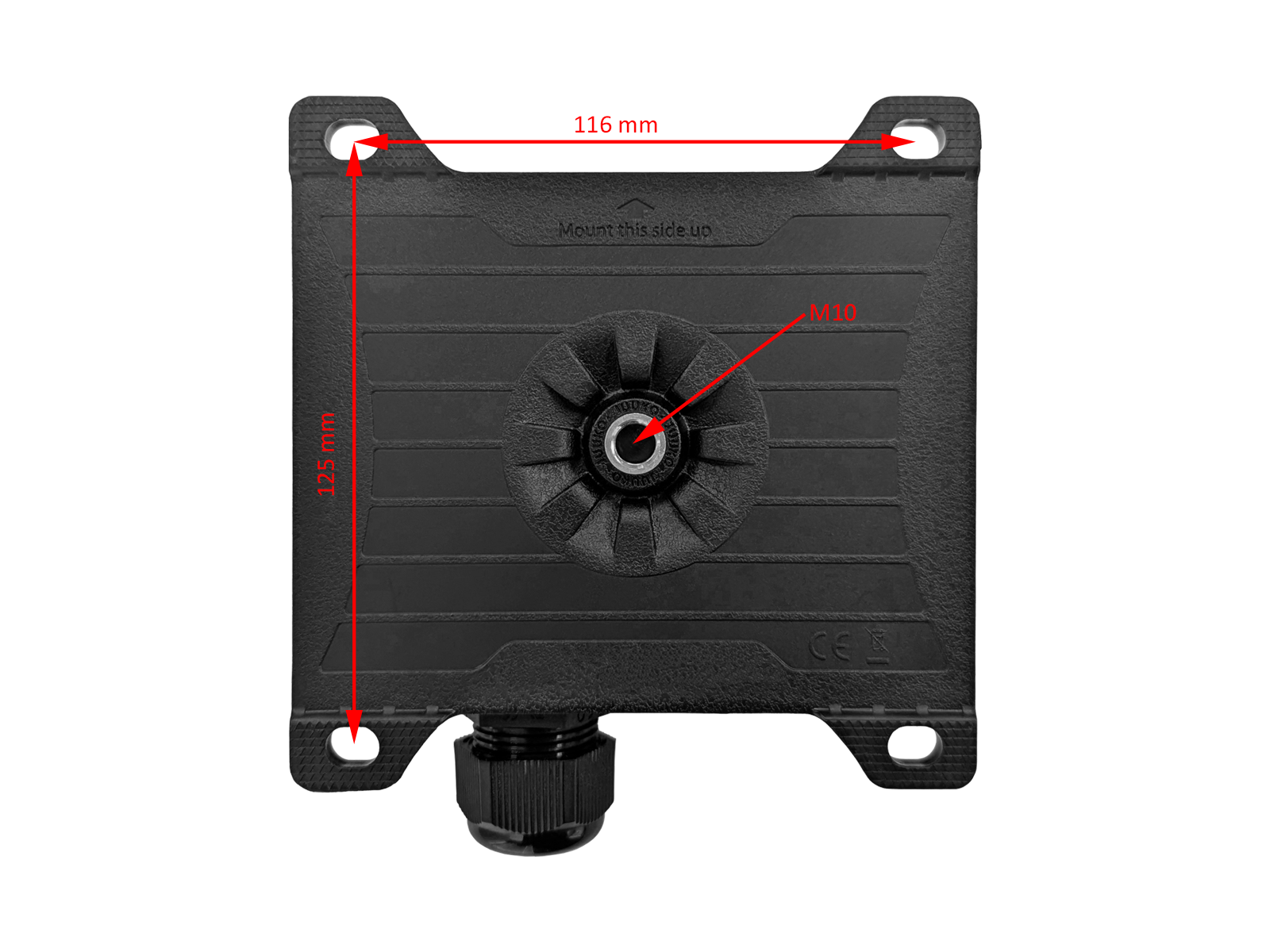

Distance between mounting brackets:
- Width 116 mm
- Height 125 mm

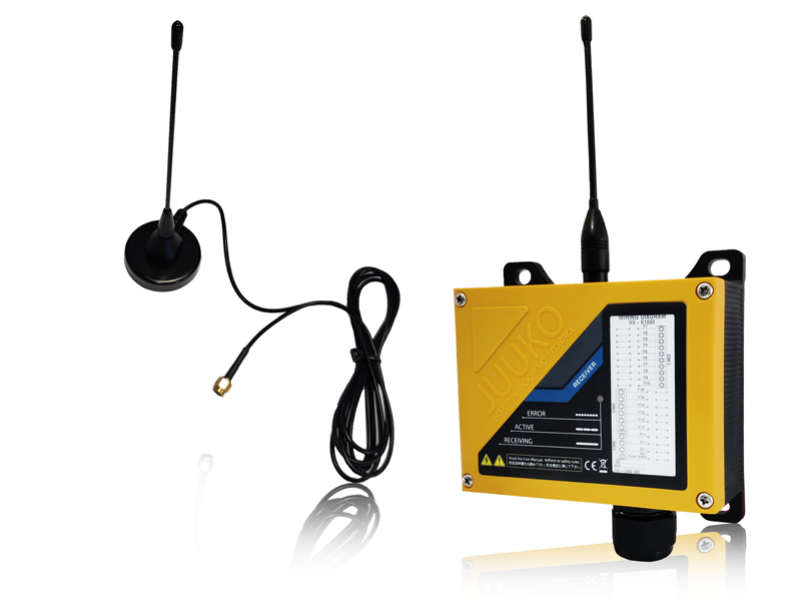

Receiver Antenna
The receiving antenna can be easily screwed onto the SMA type connector. This particular makes it easier to move it to a different location. OPTIONAL It's possible to mount an external antenna with 2 or 5 meters cable, in this way you can install the antenna in a better reception place allowing the receiver positioning even inside an electrical panels or metal structures.
Mosfet Outputs
Thanks to the Mosfet outputs, the receiver has no internal mechanical components, which makes it ideal for installation in situations where the strong vibrations are presents and constants.| Frequency | 433.0525 > 434.7775 MHz |
|---|---|
| Modulation | 4GFSK |
| Sensitivity | -112dBm at 1,2Kbps |
| Control System | PLL |
| Antenna Impedance | 50 Ohm |
| Command Response Time | 50 > 100 mS |
| Power Supply | 12/24 Vdc |
| Antenna | External |
| Standby Current Consumption | 16mA at 220Vac |
| Operating Temperature | -10°C > +75°C -14°F > +167°F |
| Connecting Interfaces | Multi-core cable |
| Outputs | 16 configurable 5A mosfets |
| Dimensions | H142 x L141,2 x P58,5 mm |
| Weight | 800g |
| Housing | Nylon and glass fiber IP65 (PA6 30% GF) |
| Technical Features | |
|---|---|
| Frequency | 433.0525 > 434.7775 MHz |
| Modulation | 4GFSK |
| Sensitivity | -112dBm at 1,2Kbps |
| Control System | PLL |
| Antenna Impedance | 50 Ohm |
| Command Response Time | 50 > 100 mS |
| Power Supply | 12/24 Vdc |
| Antenna | External |
| Standby Current Consumption | 16mA at 220Vac |
| Operating Temperature | -10°C > +75°C -14°F > +167°F |
| Connecting Interfaces | Multi-core cable |
| Outputs | 16 configurable 5A mosfets |
| Dimensions | H142 x L141,2 x P58,5 mm |
| Weight | 800g |
| Housing | Nylon and glass fiber IP65 (PA6 30% GF) |
