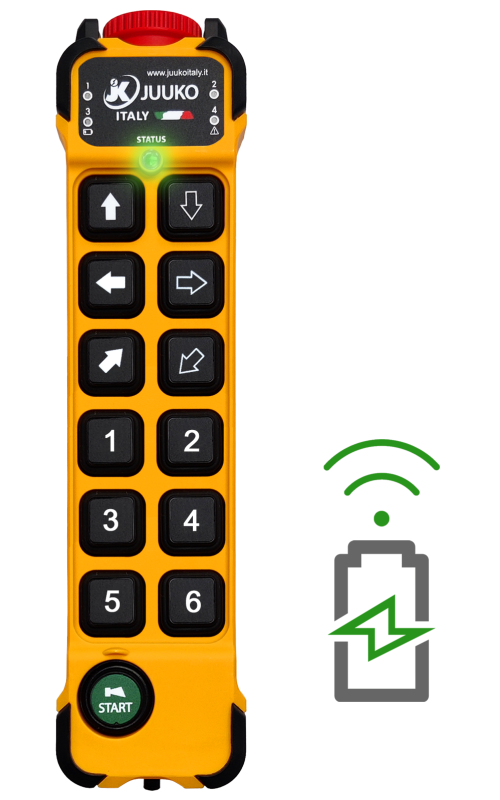

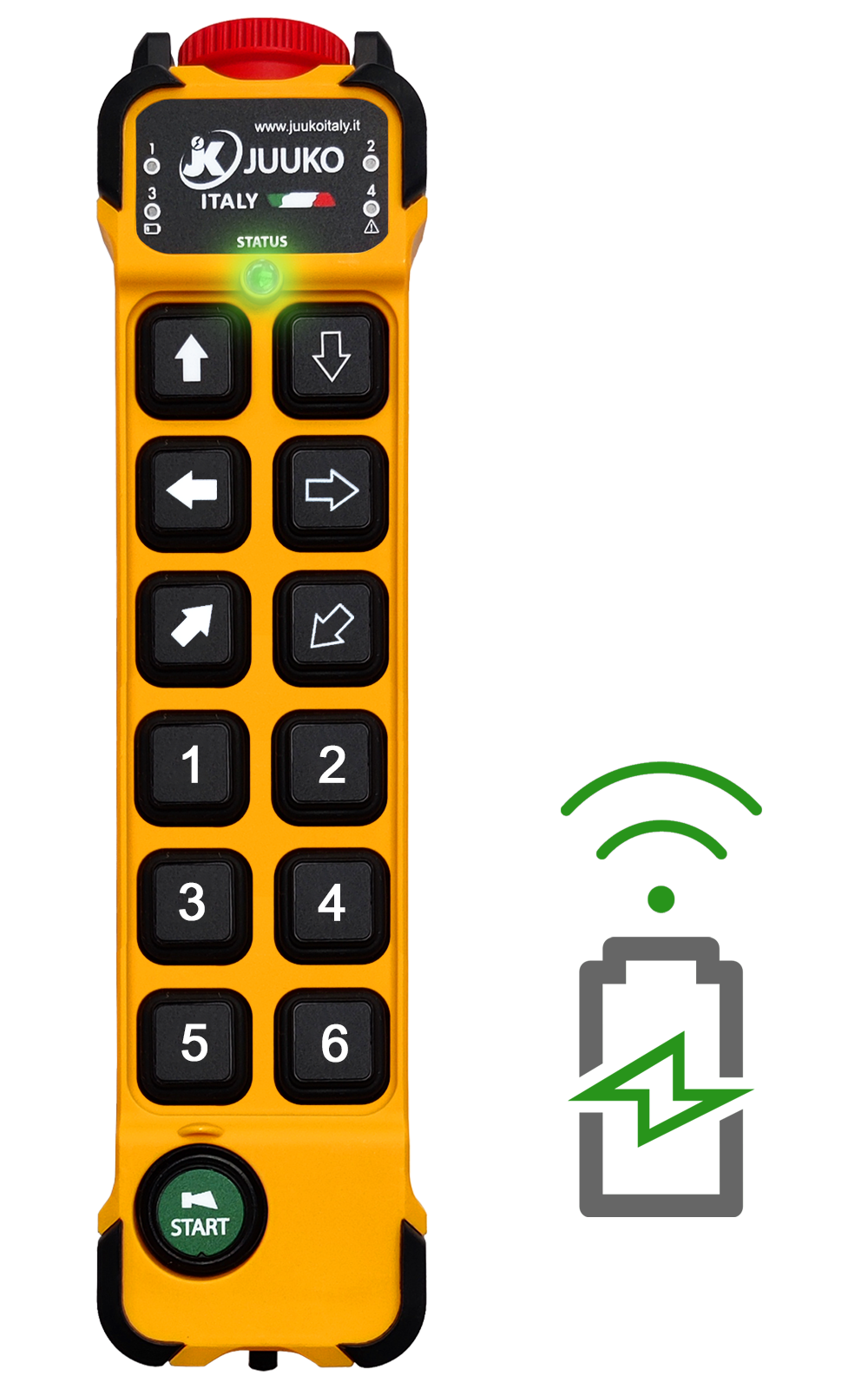

Remote control with 12 buttons and wireless charging JK1200-1212 QI TX
- WIRELESS CHARGING
- 2 red LED to indicate errors
- 2 orange LED for functions insertion
- 1 green LED for status control active

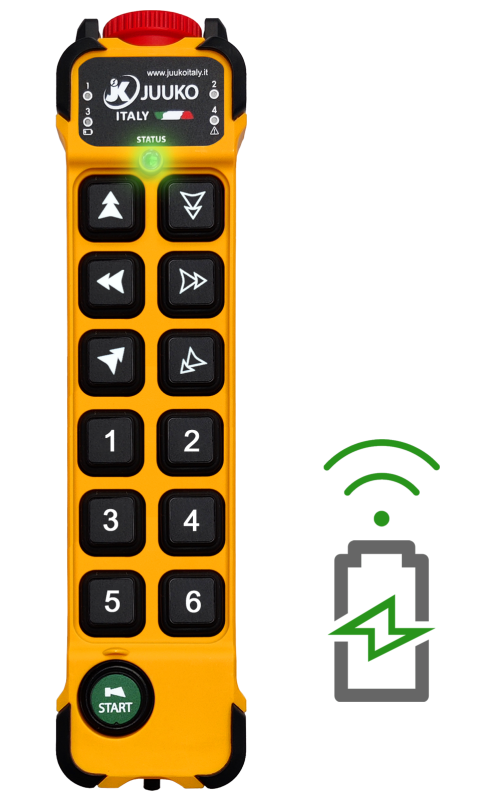

12 pushbuttons industrial remote control
The JK1212QI transmitter with single and double step pushbuttons is equipped with an ergonomic shape for easy grip.
At the top there are 2 red LED high brightness to indicate the battery level, the error code anomalies, and 2 orange LED to indicate the insertion of auxiliary functions such as selecting single and double hoist and 1 green status LED remote control active.

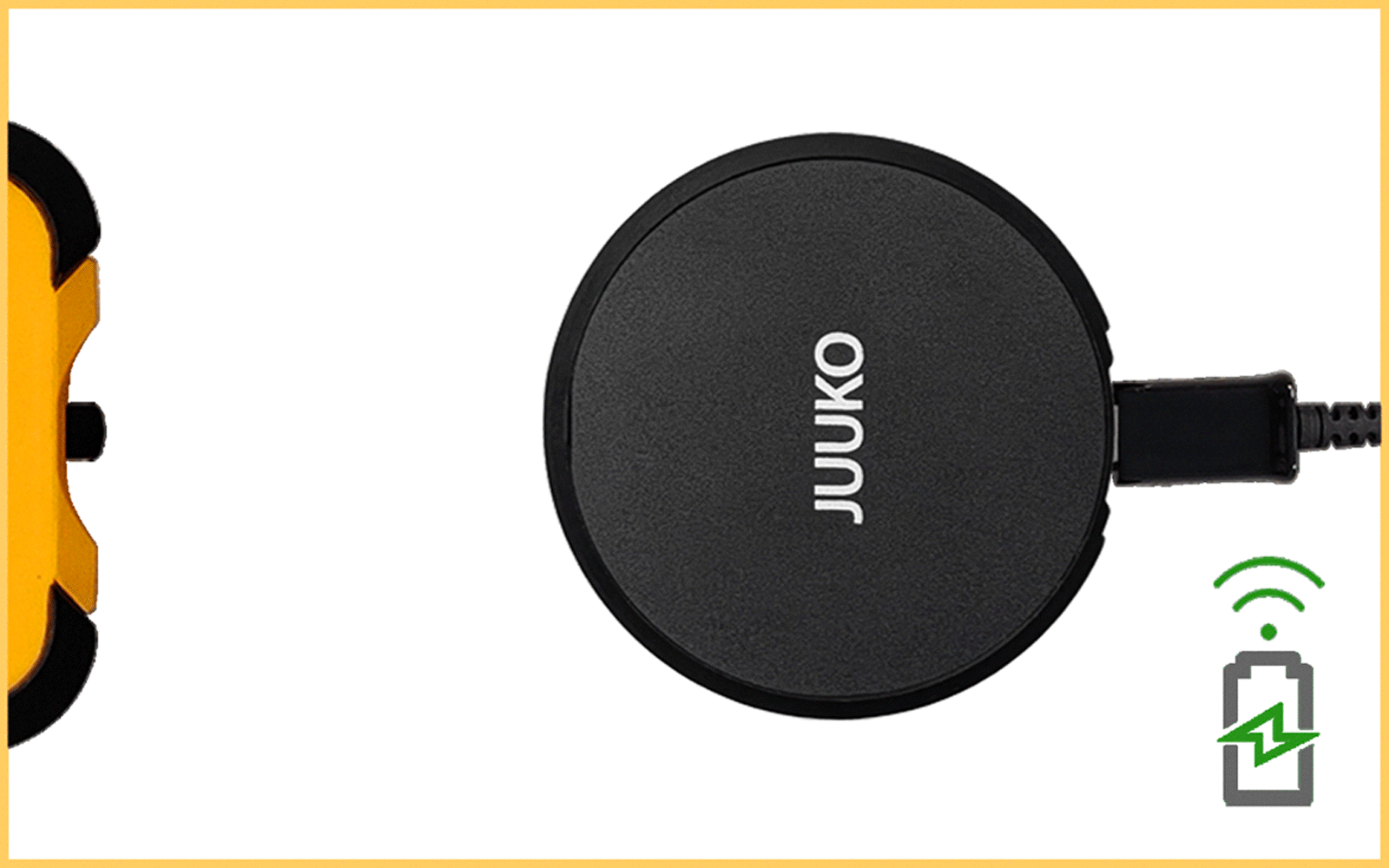

QI CHARGING
The main Wireless "QI" charging standard has been adopted by hundreds of leading manufacturers and introduces the convenience of charging your device without using cables but simply by placing it on its Charging Pad.
DOWNLOAD THE TECHNICAL SHEET
| Push-buttons Configuration | 1 START push-button 1 EMO (STOP) mushroom 12 push-buttons SINGLE STEP |
|---|---|
| Number of Available ON/OFF Command | Max. 12 + Start & EMO |
| Command Response Time | ~ 50 ms |
| Frequency Band | 433.0525 > 434.7900 Mhz |
| Channel Space | 12.5 kHz |
| Radio Communication | Bi-directional |
| Antenna Impedance | 50 Ohm |
| Maximum Operating Distance | 100 Meters (free field) |
| Hamming Distance | ≥ 15 |
| Power Supply | LR6(AA) 1.5V / NiMH(AA) 1.2V x 2 |
| Dimensions | 242 x 57 x 51 mm |
| Weight | 389g |
| Degree Protection | IP65 |
| Housing Material | PA6 (GF30%) |
| Operating and Storage Temperature | (-25°C)~(+55°C) / (-40°C)~(+85°C) |
| Push-button Configuration | 1 START push-button 1 EMO (STOP) mushroom 12 push-buttons DOUBLE STEP |
|---|---|
| Number of Available ON/OFF Command | Max. 12 + Start & EMO | Available Outputs Max. 19 |
| Command Response Time | ~ 50 ms |
| Frequency Band | 433.0525 > 434.7900 Mhz |
| Channel Space | 12.5 kHz |
| Safety Performance of the STOP function (EN ISO 13849-1) |
Pl d |
| Radio Communication | Bi-directional continuous transmission |
| Antenna Impedance | 50 Ohm |
| Maximum Operating Distance | 100 Meters |
| Hamming Distance | ≥ 15 |
| Power Supply | LR6(AA) 1.5V / NiMH(AA) 1.2V x 2 |
| Dimensions | 242 x 57 x 51 mm |
| Weight | 389g |
| Degree Protection | IP65 |
| Housing Material | PA6 (GF30%) |
| Operating and Storage Temperature | (-25°C)~(+55°C) / (-40°C)~(+85°C) (-13°F)~(+131°F) / (-40°F)~(+185°C) |
Enveloping protective cover
Shoulder strap
Replacement standard button labels
QI pad wireless charging + micro USB cable
Pad dimensions: 77 x 55 x 6.5 mm
External Antenna SMA connector
| Spec. JK1200 | |
|---|---|
| Push-buttons Configuration | 1 START push-button 1 EMO (STOP) mushroom 12 push-buttons SINGLE STEP |
| Number of Available ON/OFF Command | Max. 12 + Start & EMO |
| Command Response Time | ~ 50 ms |
| Frequency Band | 433.0525 > 434.7900 Mhz |
| Channel Space | 12.5 kHz |
| Radio Communication | Bi-directional |
| Antenna Impedance | 50 Ohm |
| Maximum Operating Distance | 100 Meters (free field) |
| Hamming Distance | ≥ 15 |
| Power Supply | LR6(AA) 1.5V / NiMH(AA) 1.2V x 2 |
| Dimensions | 242 x 57 x 51 mm |
| Weight | 389g |
| Degree Protection | IP65 |
| Housing Material | PA6 (GF30%) |
| Operating and Storage Temperature | (-25°C)~(+55°C) / (-40°C)~(+85°C) |
| Spec. JK1212QI | |
|---|---|
| Push-button Configuration | 1 START push-button 1 EMO (STOP) mushroom 12 push-buttons DOUBLE STEP |
| Number of Available ON/OFF Command | Max. 12 + Start & EMO | Available Outputs Max. 19 |
| Command Response Time | ~ 50 ms |
| Frequency Band | 433.0525 > 434.7900 Mhz |
| Channel Space | 12.5 kHz |
| Safety Performance of the STOP function (EN ISO 13849-1) |
Pl d |
| Radio Communication | Bi-directional continuous transmission |
| Antenna Impedance | 50 Ohm |
| Maximum Operating Distance | 100 Meters |
| Hamming Distance | ≥ 15 |
| Power Supply | LR6(AA) 1.5V / NiMH(AA) 1.2V x 2 |
| Dimensions | 242 x 57 x 51 mm |
| Weight | 389g |
| Degree Protection | IP65 |
| Housing Material | PA6 (GF30%) |
| Operating and Storage Temperature | (-25°C)~(+55°C) / (-40°C)~(+85°C) (-13°F)~(+131°F) / (-40°F)~(+185°C) |
Enveloping protective cover
Shoulder strap
Replacement standard button labels
QI pad wireless charging + micro USB cable
Pad dimensions: 77 x 55 x 6.5 mm
