Remote control JK1200QI WIRELESS CHARGE
- WIRELESS CHARGING
- 2 red LED to indicate errors
- 2 orange LED for functions insertion
- 1 green LED for status control active
12 push-buttons industrial remote control
The JK1200QI transmitter with single step pushbuttons is equipped with an ergonomic shape for easy grip.
At the top there are 2 red LED high brightness to indicate the battery level, the error code anomalies, and 2 orange LED to indicate the insertion of auxiliary functions such as selecting single and double hoist and 1 green status LED remote control active.

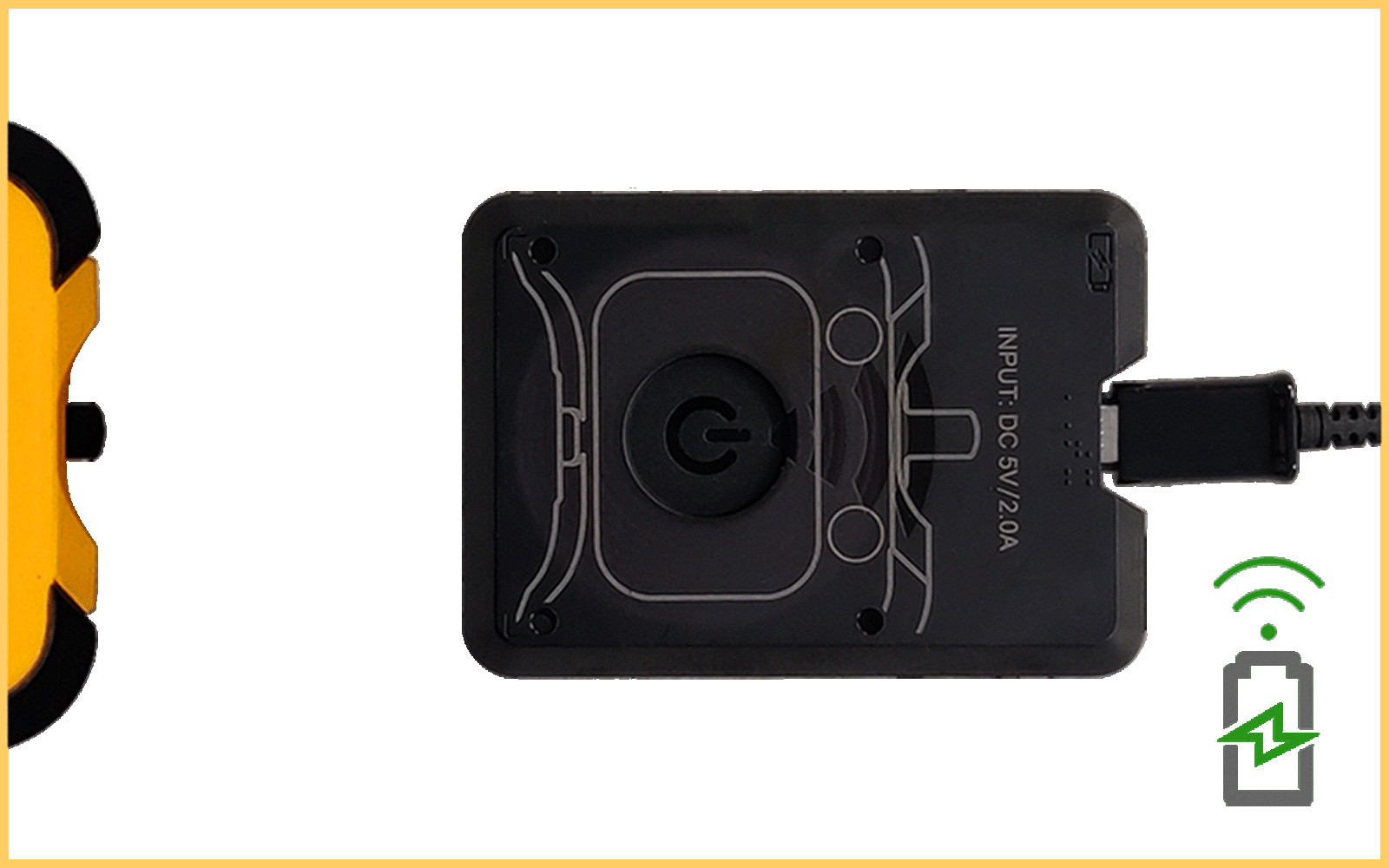

QI CHARGING
The main Wireless "QI" charging standard has been adopted by hundreds of leading manufacturers and introduces the convenience of charging your device without using cables but simply by placing it on its Charging Pad.
DOWNLOAD THE TECHNICAL SHEET
| Push-buttons Configuration | 1 START push-button 1 EMO (STOP) mushroom 12 push-buttons SINGLE STEP |
|---|---|
| Number of Available ON/OFF Command | Max. 12 + Start & EMO |
| Command Response Time | ~ 50 ms |
| Frequency Band | 433.0525 > 434.7900 Mhz |
| Channel Space | 12.5 kHz |
| Safety Performance of the STOP function (EN ISO 13849-1) |
Pl d |
| Radio Communication | Bi-directional continuous transmission |
| Antenna Impedance | 50 Ohm |
| Maximum Operating Distance | 100 Meters (free field) |
| Hamming Distance | ≥ 15 |
| Power Supply | LR6(AA) 1.5V / NiMH(AA) 1.2V x 2 |
| Dimensions | 242 x 57 x 51 mm |
| Weight | 389g |
| Degree Protection | IP65 |
| Housing Material | PA6 (GF30%) |
| Operating and Storage Temperature | (-25°C)~(+55°C) / (-40°C)~(+85°C) (-13°F)~(+131°F) / (-40°F)~(+185°C) |
Enveloping protective cover
Shoulder strap
Replacement standard button labels
QI wireless charge + USB C cable
QI dimension: Ø 62 x 8.7 mm
External Antenna SMA connector
