Remote control with 6 buttons and wireless charging JK600-606 QI TX
- Wireless charging
- 2 red LED to indicate errors
- 2 orange LED for functions insertion
- 1 green LED for status control active
Radio remote control bidirectional

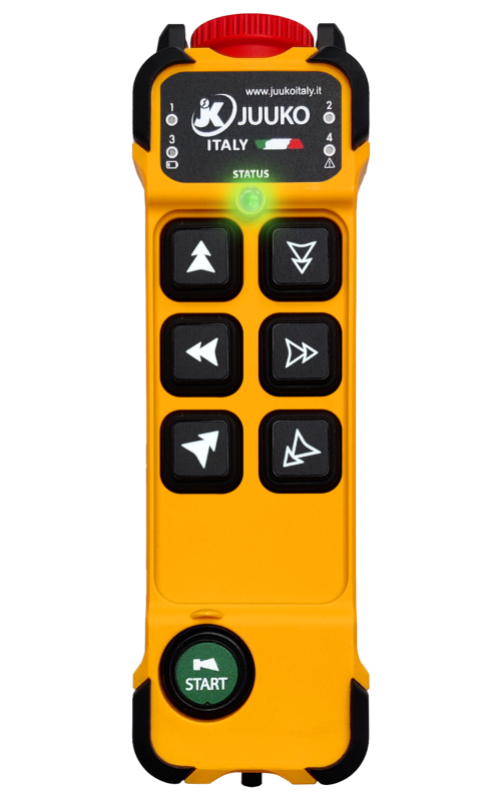

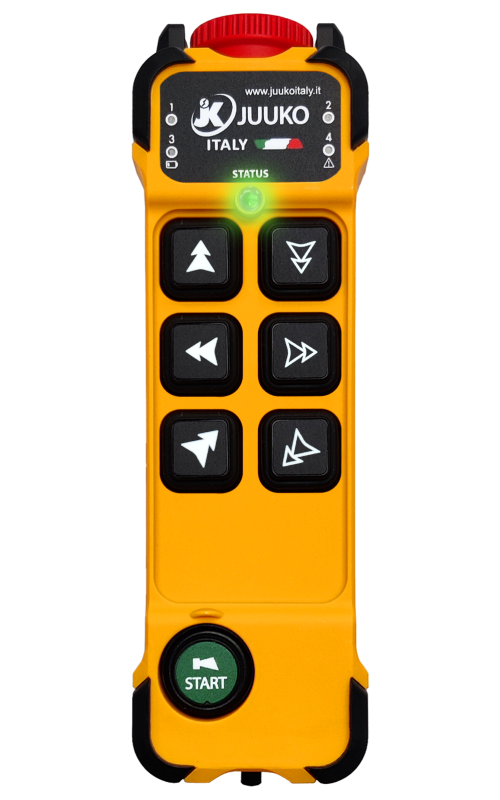

The JK600QI transmitter with single and double step pushbuttons is equipped with an ergonomic shape for easy grip.
At the top there are 2 red LED high brightness to indicate the battery level, the error code anomalies, and 2 orange LED to indicate the insertion of auxiliary functions such as selecting single and double hoist and 1 green status LED remote control active.
QI Charging
The main Wireless "QI" charging standard has been adopted by hundreds of leading manufacturers and introduces the convenience of charging your device without using cables but simply by placing it on its Charging Pad.
DOWNLOAD THE TECHNICAL SHEET
| Push-buttons Configuration | 1 START push-button 1 EMO (STOP) mushroom 6 push-buttons SINGLE STEP |
|---|---|
| Number of Available ON/OFF Command | Max. 6 + Start & EMO |
| Command Response Time | ~ 50 ms |
| Frequency Band | 433.0525 > 434.7900 Mhz |
| Channel Space | 12.5 kHz |
| Safety Performance of the STOP function (EN ISO 13849-1) |
Pl d |
| Radio Communication | Bi-directional continuous transmission |
| Antenna Impedance | 50 Ohm |
| Maximum Operating Distance | 100 Meters (free field) |
| Hamming Distance | ≥ 15 |
| Power Supply | LR6(AA) 1.5V / NiMH(AA) 1.2V x 2 |
| Dimensions | 193 x 57 x 51 mm |
| Weight | 325g |
| Degree Protection | IP65 |
| Housing Material | PA6 (GF30%) |
| Operating and Storage Temperature | (-25°C)~(+55°C) / (-40°C)~(+85°C) (-13°F)~(+131°F) / (-40°F)~(+185°C) |
| Push-buttons Configuration | 1 START push-button 1 EMO (STOP) mushroom 6 push-buttons DOUBLE STEP |
|---|---|
| Number of Available ON/OFF Command | Max. 6 + Start & EMO | Available Outputs Max. 10 |
| Command Response Time | ~ 50 ms |
| Frequency Band | 433.0525 > 434.7900 Mhz |
| Channel Space | 12.5 kHz |
| Radio Communication | Bi-directional |
| Antenna Impedance | 50 Ohm |
| Maximum Operating Distance | 100 Metri (free field) |
| Hamming Distance | ≥ 15 |
| Power Supply | LR6(AA) 1.5V / NiMH(AA) 1.2V x 2 |
| Dimensions | 193 x 57 x 51 mm |
| Weight | 325g |
| Degree Protection | IP65 |
| Housing Material | PA6 (GF30%) |
| Operating and Storage Temperature | (-25°C)~(+55°C) / (-40°C)~(+85°C) |
Enveloping protective cover
Shoulder strap
Replacement standard button labels
QI pad wireless charging + micro USB cable
Pad dimensions: 77 x 55 x 6.5 mm
External Antenna SMA connector
| Spec. JK600QI | |
|---|---|
| Push-buttons Configuration | 1 START push-button 1 EMO (STOP) mushroom 6 push-buttons SINGLE STEP |
| Number of Available ON/OFF Command | Max. 6 + Start & EMO |
| Command Response Time | ~ 50 ms |
| Frequency Band | 433.0525 > 434.7900 Mhz |
| Channel Space | 12.5 kHz |
| Safety Performance of the STOP function (EN ISO 13849-1) |
Pl d |
| Radio Communication | Bi-directional continuous transmission |
| Antenna Impedance | 50 Ohm |
| Maximum Operating Distance | 100 Meters (free field) |
| Hamming Distance | ≥ 15 |
| Power Supply | LR6(AA) 1.5V / NiMH(AA) 1.2V x 2 |
| Dimensions | 193 x 57 x 51 mm |
| Weight | 325g |
| Degree Protection | IP65 |
| Housing Material | PA6 (GF30%) |
| Operating and Storage Temperature | (-25°C)~(+55°C) / (-40°C)~(+85°C) (-13°F)~(+131°F) / (-40°F)~(+185°C) |
| Spec. JK606 | |
|---|---|
| Push-buttons Configuration | 1 START push-button 1 EMO (STOP) mushroom 6 push-buttons DOUBLE STEP |
| Number of Available ON/OFF Command | Max. 6 + Start & EMO | Available Outputs Max. 10 |
| Command Response Time | ~ 50 ms |
| Frequency Band | 433.0525 > 434.7900 Mhz |
| Channel Space | 12.5 kHz |
| Radio Communication | Bi-directional |
| Antenna Impedance | 50 Ohm |
| Maximum Operating Distance | 100 Metri (free field) |
| Hamming Distance | ≥ 15 |
| Power Supply | LR6(AA) 1.5V / NiMH(AA) 1.2V x 2 |
| Dimensions | 193 x 57 x 51 mm |
| Weight | 325g |
| Degree Protection | IP65 |
| Housing Material | PA6 (GF30%) |
| Operating and Storage Temperature | (-25°C)~(+55°C) / (-40°C)~(+85°C) |
Enveloping protective cover
Shoulder strap
Replacement standard button labels
QI pad wireless charging + micro USB cable
Pad dimensions: 77 x 55 x 6.5 mm
