The JK808QI transmitter with double step pushbuttons is equipped with an ergonomic shape for easy grip.
At the top there are 2 red LED high brightness to indicate the battery level, the error code anomalies, and 2 orange LED to indicate the insertion of auxiliary functions such as selecting single and double hoist and 1 green status LED remote control active.

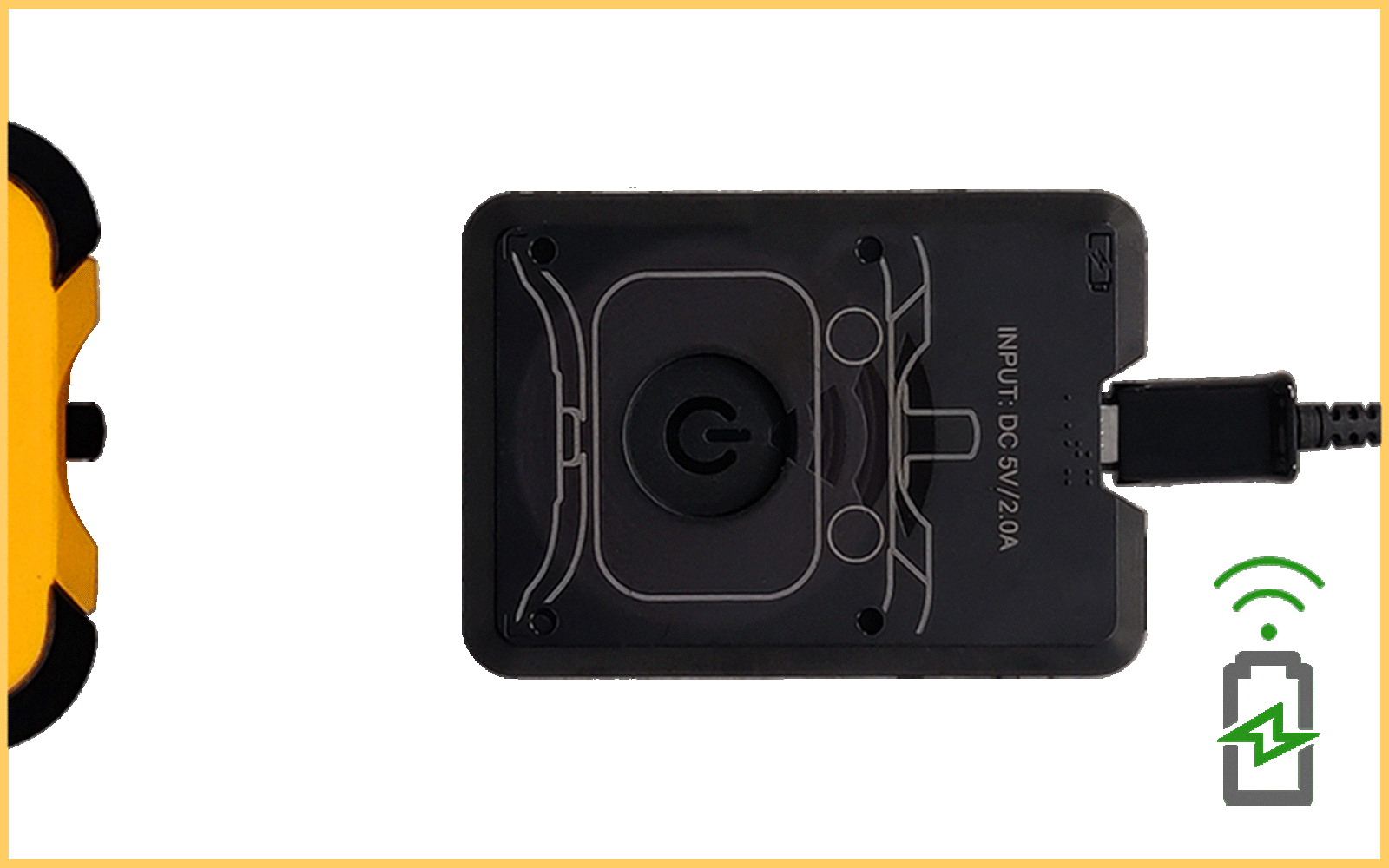

QI CHARGING
The main Wireless "QI" charging standard has been adopted by hundreds of leading manufacturers and introduces the convenience of charging your device without using cables but simply by placing it on its Charging Pad.
| Push-buttons Configuration | 1 START push-button 1 EMO (STOP) mushroom 8 push-buttons DOUBLE STEP |
|---|---|
| Number of Available ON/OFF Command | Max. 8 + Start & EMO | Available Outputs Max. 13 |
| Command Response Time | ~ 50 ms |
| Frequency Band | 433.0525 > 434.7900 Mhz |
| Channel Space | 12.5 kHz |
| Safety Performance of the STOP function (EN ISO 13849-1) |
Pl d |
| Radio Communication | Bi-directional continuous transmission |
| Antenna Impedance | 50 Ohm |
| Maximum Operating Distance | 100 Meters (free field) |
| Hamming Distance | ≥ 15 |
| Power Supply | LR6(AA) 1.5V / NiMH(AA) 1.2V x 2 |
| Dimensions | 193 x 57 x 51 mm |
| Weight | 325g |
| Degree Protection | IP65 |
| Housing Material | PA6 (GF30%) |
| Operating and Storage Temperature | (-25°C)~(+55°C) / (-40°C)~(+85°C) (-13°F)~(+131°F) / (-40°F)~(+185°C) |
|
Enveloping protective cover |
|
|
Shoulder strap |
|
Replacement standard button labels |
|
|
QI pad wireless charging + micro USB cable |
|
External Antenna SMA connector |
|
