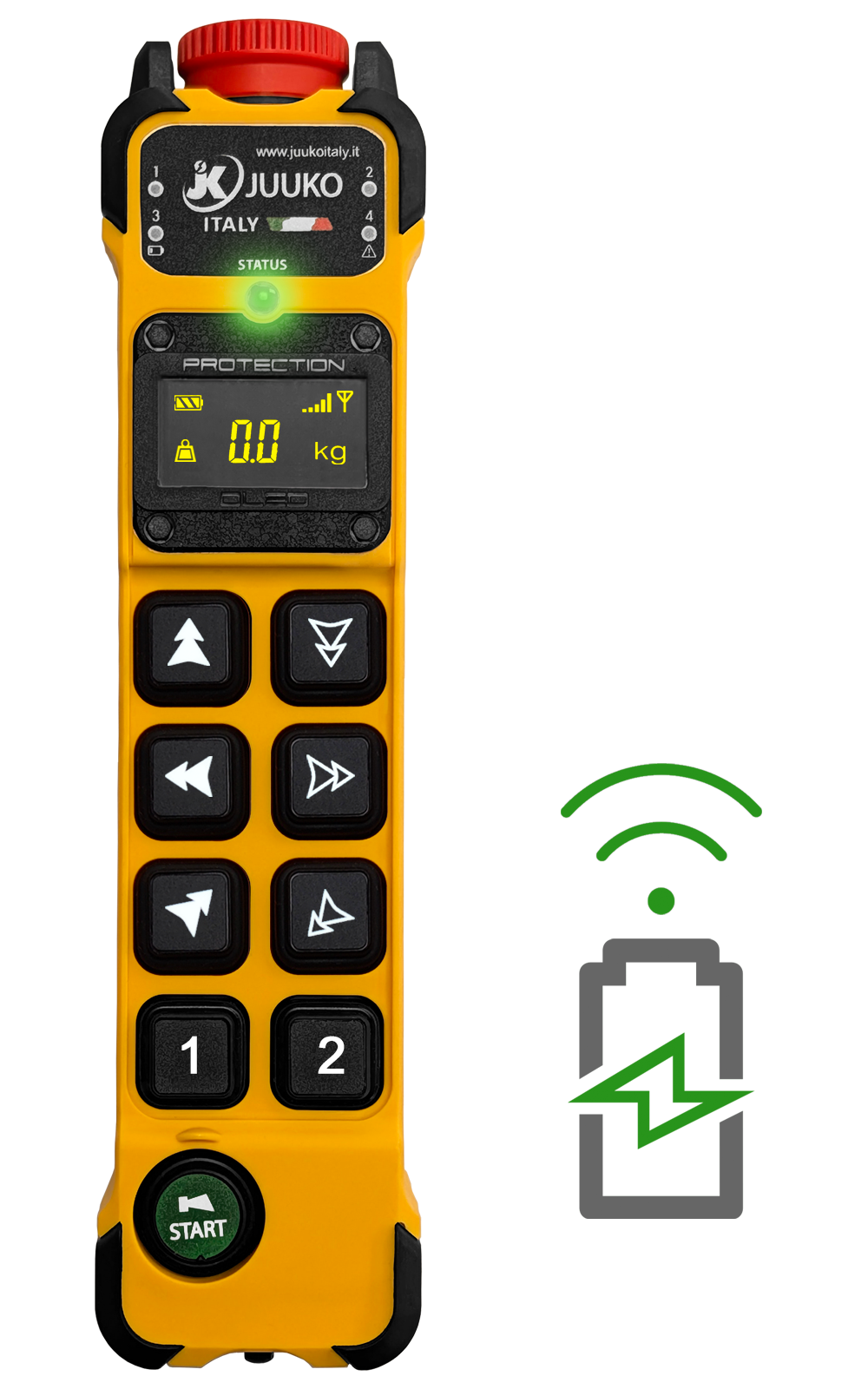

8 buttons remote control with OLED Display JKD808QI - DISPLAY
- Ergonomic Shape
- Programmable OLED Display
- 4 LEDs feedback relays
- 1 Green LED for Status Control Active
The transmitter is equipped with an ergonomic shape for easy grip.
At the top there are 2 red LED high brightness to indicate the battery level, the error code anomalies, and 2 orange LED to indicate the insertion of auxiliary functions such as selecting single and double hoist and 1 green status LED remote control active.

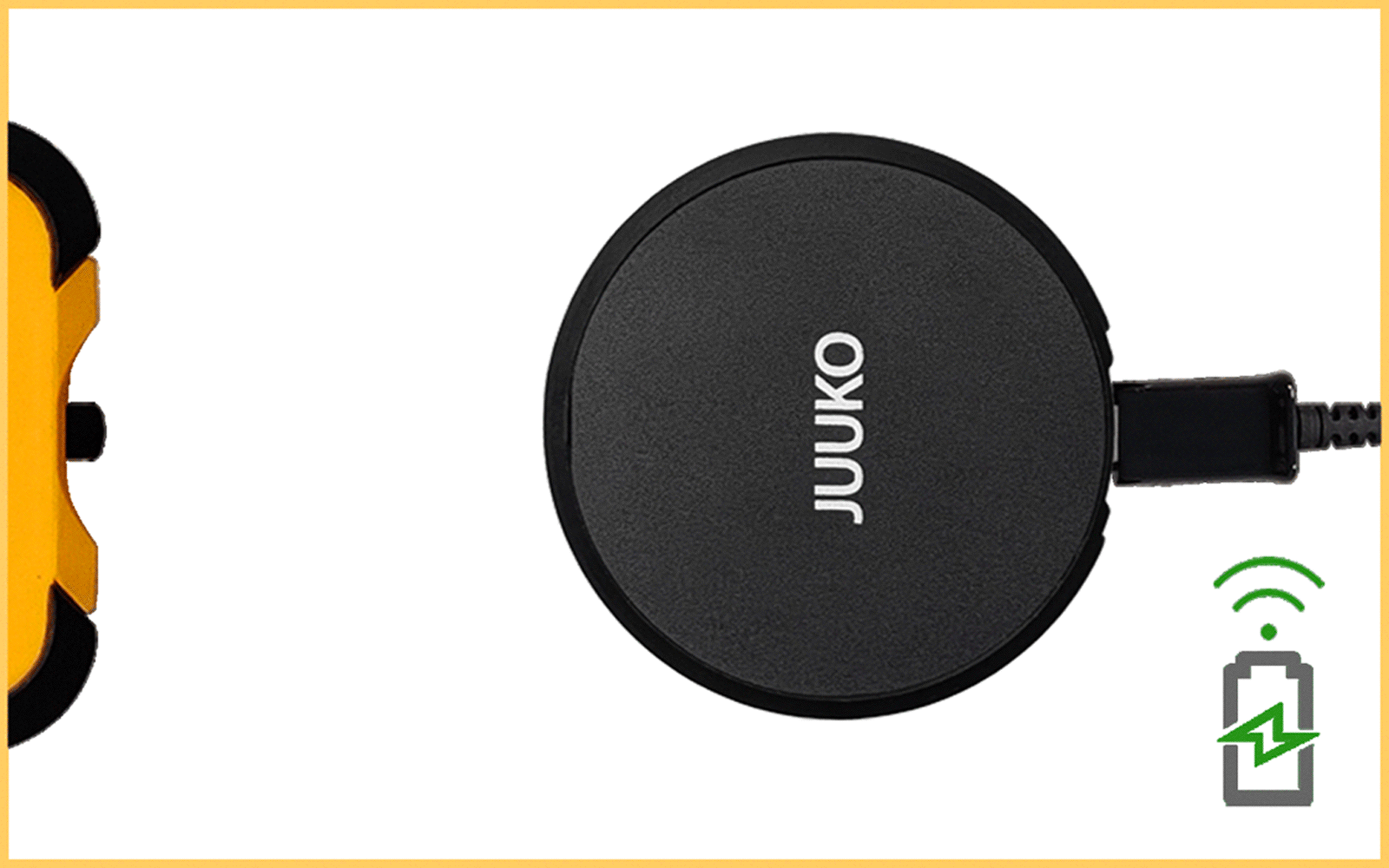

QI CHARGING
The main Wireless "QI" charging standard has been adopted by hundreds of leading manufacturers and introduces the convenience of charging your device without using cables but simply by placing it on its Charging Pad.

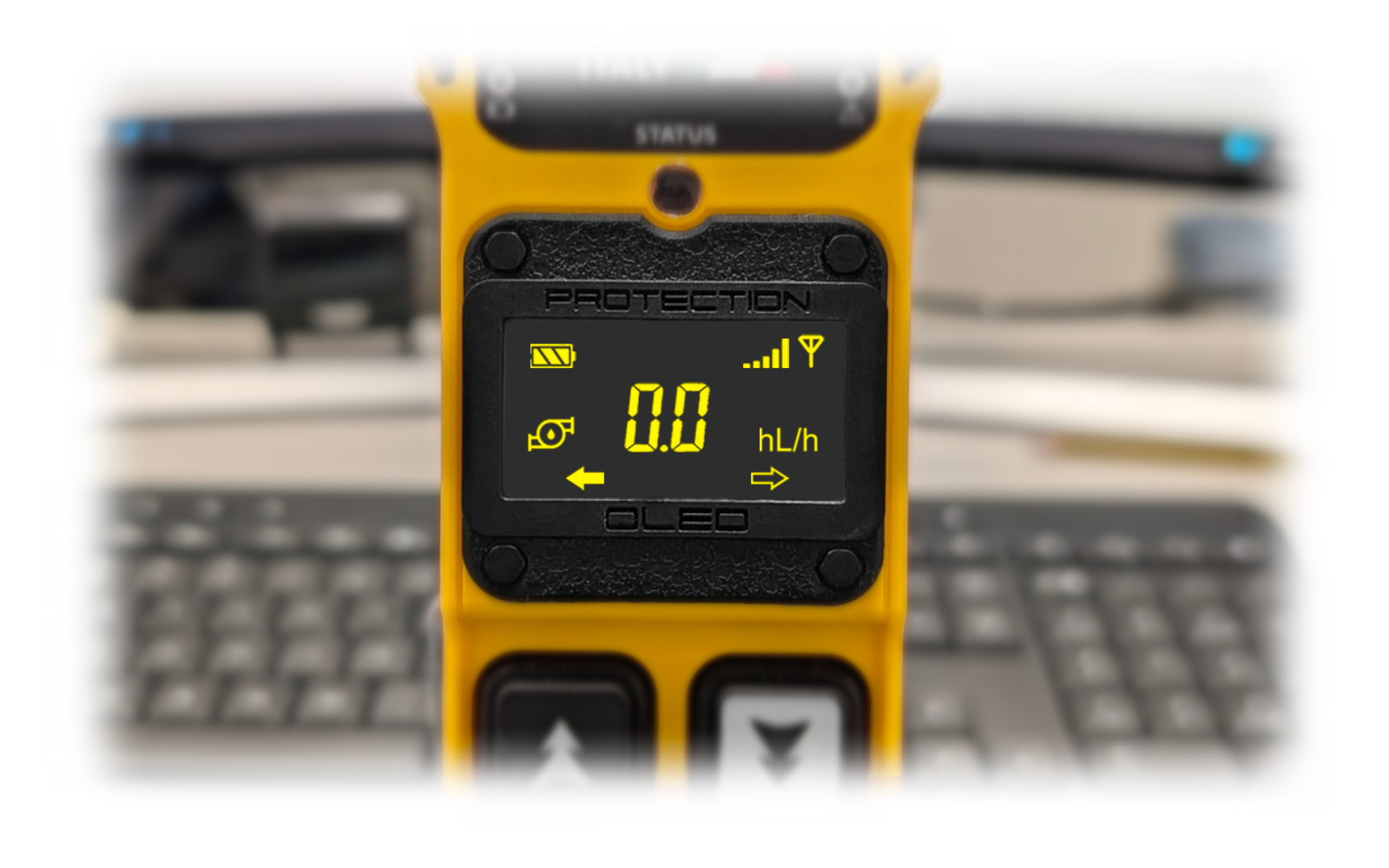

The OLED Display
Thanks to the practical OLED display positioned at the center of the remote control, checking the battery level, signal strength, command direction and operating parameters is quick, easy and intuitive. Essential information is always clearly visible, helping to improve precision and safety during operation.
| Configuration | 1 START 1 EMO (STOP) mushroom 1 OLED Display CONFIGURABLE 8 push-buttons DOUBLE STEP |
|---|---|
| Number of Available ON/OFF Command | Max. 8 + Start & EMO | Available Outputs Max. 13 |
| Command Response Time | ~ 50 ms |
| Frequency Band | 2.4 GHz |
| Control System | PLL |
| Safety Performance of the STOP function (EN ISO 13849-1) |
Plr = e |
| Radio Communication | Bi-directional continuous transmission |
| Antenna Impedance | 50 Ohm |
| Maximum Operating Distance | 100 Meters (free field) |
| Hamming Distance | ≥ 15 |
| Power Supply | LR6(AA) 1.5V / NiMH 1.2V x 2 |
| Dimensions | 242 x 57 x 51 mm |
| Weight | 400g |
| Degree Protection | IP65 |
| Housing Material | PA6 (GF30%) |
| Operating and Storage Temperature | (-25°C)~(+55°C) / (-40°C)~(+65°C) (-13°F)~(+131°F) / (-40°F)~(+149°C) |
Enveloping protective cover
Shoulder strap
Replacement standard button labels
QI wireless charge + USB C cable
QI dimension: Ø 62 x 8.7 mm
External Antenna SMA connector
