8 buttons remote control with potentiometer JKR808QI - POTENTIOMETER
- Ergonomic Shape
- Potentiometer 0 ~ 10V
- 4 LEDs feedback relays
- 1 GREEN LED FOR STATUS CONTROL ACTIVE
The transmitter is equipped with an ergonomic shape for easy grip.
At the top there are 2 red LED high brightness to indicate the battery level, the error code anomalies, and 2 orange LED to indicate the insertion of auxiliary functions such as selecting single and double hoist and 1 green status LED remote control active.

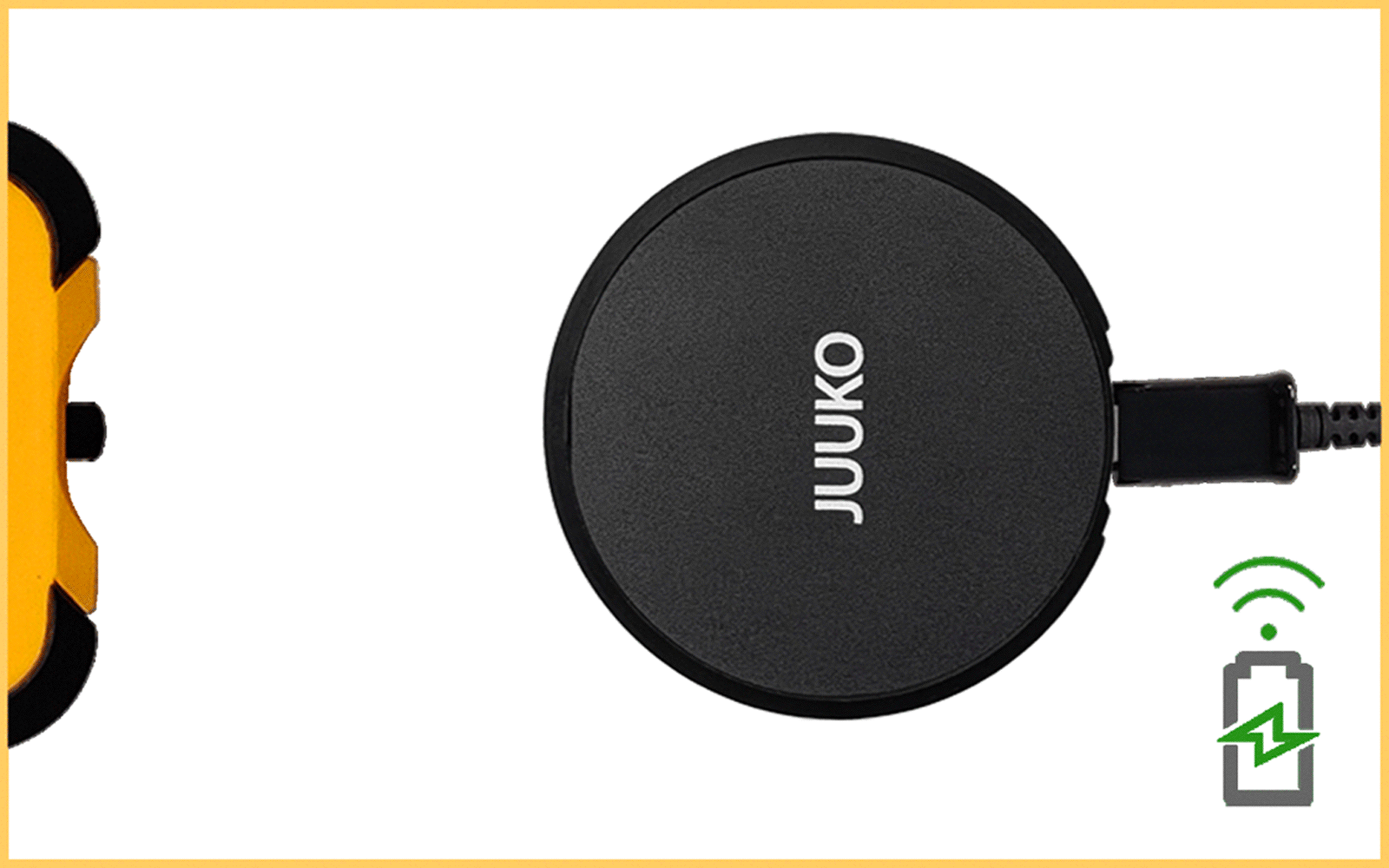

QI CHARGING
The main Wireless "QI" charging standard has been adopted by hundreds of leading manufacturers and introduces the convenience of charging your device without using cables but simply by placing it on its Charging Pad.
The knob
Thanks to the practical knob in the centre of the remote control, acting on the potentiometer to adjust the speeds is simple, immediate and accurate. Perfect for calibrating micro displacements, increasing accuracy in jobs.
DOWNLOAD THE TECHNICAL SHEET
| Pushbuttons Configuration | 1 START 1 EMO (STOP) mushroom 1 potentiometer 0 ~ 10V CONFIGURABLE 8 push-buttons DOUBLE STEP |
|---|---|
| Number of Available ON/OFF Command | Max. 8 + Start & EMO | Available Outputs Max. 13 |
| Command Response Time | ~ 50 ms |
| Frequency Band | 433.0525 > 434.7900 Mhz |
| Channel Space | 12.5 kHz |
| Safety Performance of the STOP function (EN ISO 13849-1) |
Pl d START option with potentiometer in position of Ø |
| Radio Communication | Bi-directional continuous transmission |
| Antenna Impedance | 50 Ohm |
| Maximum Operating Distance | 100 Meters (free field) |
| Hamming Distance | ≥ 15 |
| Power Supply | LR6(AA) 1.5V / NiMH 1.2V x 2 |
| Dimensions | 242 x 57 x 51 mm |
| Weight | 400g |
| Degree Protection | IP65 |
| Housing Material | PA6 (GF30%) |
| Operating and Storage Temperature | (-25°C)~(+55°C) / (-40°C)~(+85°C) (-13°F)~(+131°F) / (-40°F)~(+185°C) |
Enveloping protective cover, for potentiometer version
Shoulder strap
Replacement standard button labels
QI pad wireless charging + micro USB cable
Pad dimensions: 77 x 55 x 6.5 mm
External Antenna SMA connector
Protective Case pushbuttons
